Flame Retardant EVA ESD Antistatic Foam High Density Shock Absorption Packaging
Product Details:
| Place of Origin: | China |
| Brand Name: | Herzesd |
| Model Number: | HZ-1204 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Piece/Pieces |
|---|---|
| Price: | $0.20 - $10.00 / Piece |
| Packaging Details: | Film Carton with pallet |
| Supply Ability: | 1000 Set/Sets per Week |
|
Detail Information |
|||
| Material: | EVA | Type: | Foam |
|---|---|---|---|
| Color: | Black | Density: | 80-100Kg/ M3 |
| Volume Resistivity: | 10e3-10e6 Ω.cm,10e6-10e9Ω.cm | Customized: | Trays, Box With Slot Will Be OK |
| Design: | Avaliable With Your Sample | Application: | Electronics Packing |
| High Light: | Shock Absorption Anti Static Polyurethane Foam,Flame Retardant Anti Static Foam Sheets,EVA High Density Foam |
||
Product Description

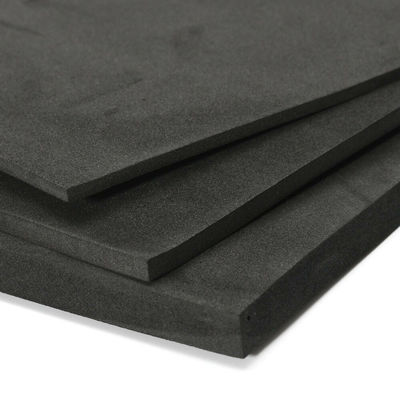

Anti-static EVA foam tray,also called ESD EVA foam tray, is made of a new type of environmentally friendly plastic EVA material, with good conductive, cushioning, seismic, heat insulation, moisture-proof, chemical corrosion and other advantages, and non-toxic, do not absorb water.
ESD EVA foam tray Features:
Excellent anti static performance: Anti-static time is permanent, not affected by environmental dry humidity;
Cushioning and damping performance is excellent: independent and close bubble hole;
Good conductivity: 10^3-10^9;
High temperature: Max temperature Tolerance
Chemical resistance: resistant to organic solvents, acids etc.
No chemical corrosion: no corrosion to components and packages.
Heat insulation, sound insulation, wear-resistant, not easy to lose;
Good two times processing performance, easy to form.
| Item | Technical Data | |
| Conductive | Antistatic | |
| Model | HZ-1204A | HZ-1204B |
| Color | Black | Black |
| Density | 80-100Kg/ m3 | |
| Volume Resistivity | 10e3—10e6 ohm.cm | 10e6—10e9ohm.cm |
| |
| |
The ESD products manufactured and supplied by Shanghai Herzesd Industrial are the result of meticulous planning and technological excellence. Our products showcase a fine amalgamation of excellence, quality, innovation, and technology. A continuous upgradation is always at place to enhance the security features applicable at various stages and premises on ESD accessories. These products are long lasting and equipped with precision technology. We have a group of hard working personnel who keep detecting the machines for better security.
FAQ
Q:1, Why you need ESD protect for your production line?
♦ Electronic Components or assemblies at risk from electrostatic discharges (ESD) are among those sensitive elements which can be
destroyed or damaged if the permitted levels of current or impact energy are exceeded.
♦ As a rule, these are always semi-conducting components and most are also thick- and thin-film construction elements.This type of
construction element is mostly damaged through human mishandling. A human-being can charge several thousands of volts just by
walking. A discharge can be felt by humans from approximately 2000-3000 V, a current which is already well above the 'tolerance level'
of many ESD components.
♦ Before buying or implementing ESD safe products one needs implementing an ESD safe procedure according to theESD standards
IEC 61340 or ANSI S2020 which is the foundation of ESD preventive protective work and a greater guarantee of quality assurance.
♦ Besides our Anti-Static conductive ESD Workstations we offer an extensive range of
Antistatic ESD Chairs, Antistatic ESD Cleaning & Maintenance, Antistatic ESD Clothing, ESD Shoes ESD Footwear,Antistatic ESD
Flooring & Antistatic ESD Table Mats, ESD Safe Packaging, ESD Personal Grounding Materials, Anti-Static ESD Protective Storage & Warehousing Systems EPA, ESD Storage Boxes, ESD Test & Measuring Equipment, ESD Trainings, ESD Support & ESD Audits.
Q: 2, Why you choose HerzESD?
♦ HerzESD strives to serve our customers better by offering correct and clear explanatory answers. We try to do so, even when informing our customers better, means contradicting a more established but sometimes flawed opinions on the market. At HerzESD we pride ourselves on ensuring the only correct ESD solution.
♦ To continue this vision we need reliable ESD manufacturers and suppliers on which we can always count. HerzESD is a solid partner and together with our international partners,we stay strong and vigilant in regards to possible improvements or new solutions in tackling and controlling static electricity.
