PCB Circulation ESD Trolley Handle Adjustable Customized ESD PCB Storage Circulation Trolley Cart
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | HERZESD |
| Model Number: | HZ-27103A / HZ-27103B /HZ27104A /HZ27104B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 160~300USD |
| Packaging Details: | film bag in carton |
| Delivery Time: | 5-7day |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs/week |
|
Detail Information |
|||
| Size: | 950x480x1300mm /1100*480*1300mm Or Customized | Flashboard Width: | 350mm/450mm/530m M/630mm |
|---|---|---|---|
| Slot Width: | 5mm | Capacity: | 300pcs/400pcs/customized |
| Wheels: | 4/5 Inch ESD Caster | Resistance:: | 106-109Ω |
| High Light: | ESD PCB Storage Circulation Trolley Cart,Antistatic PCB Circulation Trolley,Handle Adjustable ESD Trolley |
||
Product Description

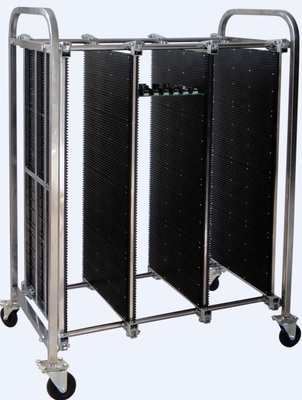

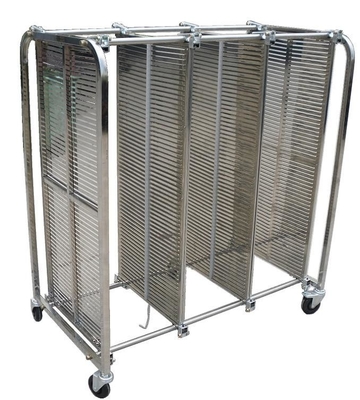

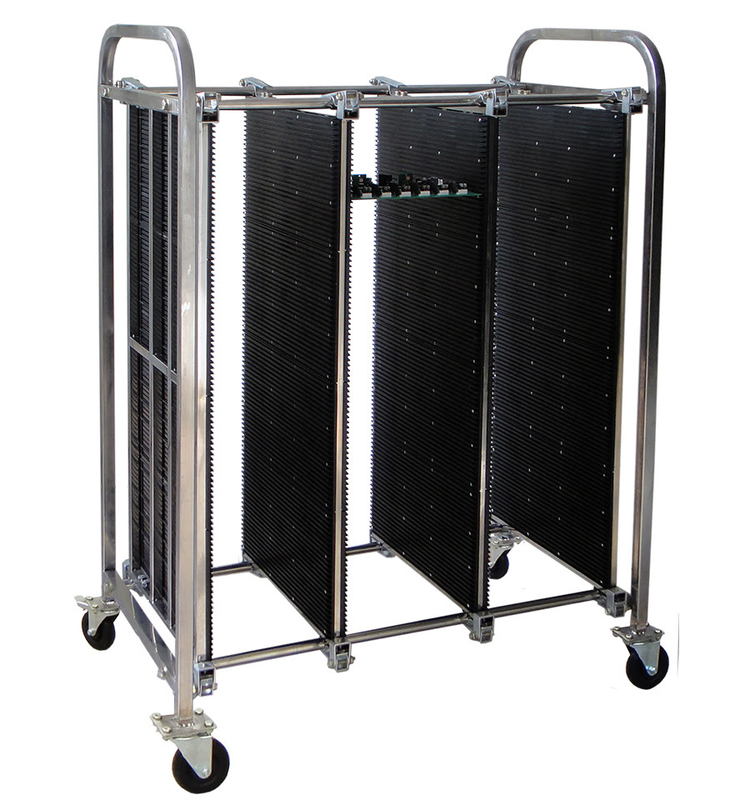

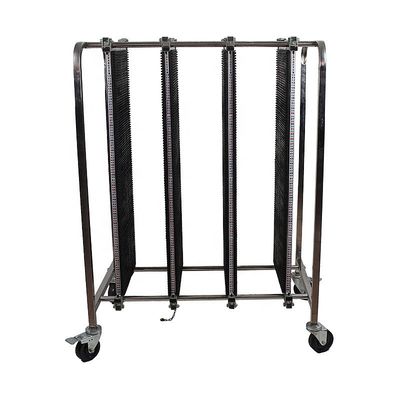

HerzESD PCB trolley is composed of plastic side plate and #304 #201 stainless steel frame rack, and wheels. We have many size and types of side plate to meet different customers’ request on size. And we could offer different types of wheels to meet different customer on load request Application: Electronics industrial storage & circulation ESD protection. Customizable
Anti-static measures: conductive castor and conductive chain;
Pressure plugs Design: Each anti-static board is fixed by four pressure plugs;
Four wheels design: two wheels are directional brake wheels and two universal wheels;
Anti-static board: anti-static board is outstanding in resistance of chemical solvents and impact;
Super storage: Each turnover car can store 100 to 500
pcs PCB. The number of storage PCB is relied on the thickness of PCB.
| Model | Size(mm) | Flashboard Width | Slot width | Depth | Pitch | Slot NO./row | Side plate structure | Adj. method |
| HZ-27103A | 950×480×1300 | 350mm/45 0mm/530m m/630mm | 5mm | 4mm | 10mm | 100 | 4pcs panel joined | Handle adjustable |
| HZ-27103B | 1100×480×1300 | |||||||
| HZ-27104A | 900×675×1300 | 515mm | 5mm | 5mm | 19mm | 60/120 | One whole piece side plate | Handle adjustable |
| HZ-27104B | 900×450×1300 | 280/350m m |
5mm | 5mm | 19mm | 50/100 | ||
| Remark:HZ-27603 this model trolley material is plastic,HZ-27604 this model trolley material is stainless steel , all items Volume resistance: 106-109Ω, Any size can be customized according to customer request. adding double flashboard, it can insert more PCBs. | ||||||||
