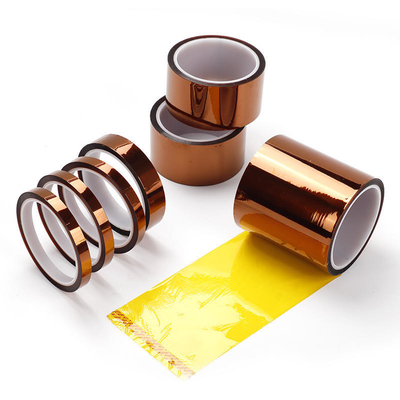

Heat Resistant Kapton Polyimide Self Adhesive Tape
Product Details:
| Place of Origin: | China |
| Brand Name: | Herzesd |
| Certification: | CE, Rosh |
| Model Number: | HZ-1406 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 rolls |
|---|---|
| Price: | 0.1-10 rolls |
| Packaging Details: | film bag in carton |
| Delivery Time: | 3-5 days |
| Payment Terms: | TT,Paypal |
| Supply Ability: | 10000rolls/day |
|
Detail Information |
|||
| Material: | Polyimide | Thickness: | 0.06mm |
|---|---|---|---|
| Length: | 33m | Width: | 3-500mm |
| Name: | ESD Kapton Tape | Adhesive Side: | Single Sided |
| Temperature Resistance: | 500F, 260℃ | MOQ: | 100roll |
| High Light: | Heat Resistant Self Adhesive Tape,Self Adhesive Kapton Tape,Heat Resistant Kapton Tape |
||
Product Description
Basic: Polyimide film + silicone pressure sensitive adhesive
High temperature resistance, solvent resistance, stable and reliable performance
High insulation, high temperature resistance, low temperature, acid and alkali resistance, low electrolysis, good mechanical properties, abrasion resistance, tear resistance; special adhesive treatment, strong adhesion, no residual residue on the masked surface after tearing.
Application : used as electrical insulation for winding transformers, motors, coils, capacitors and variable frequency power supplies in the electronics industry.

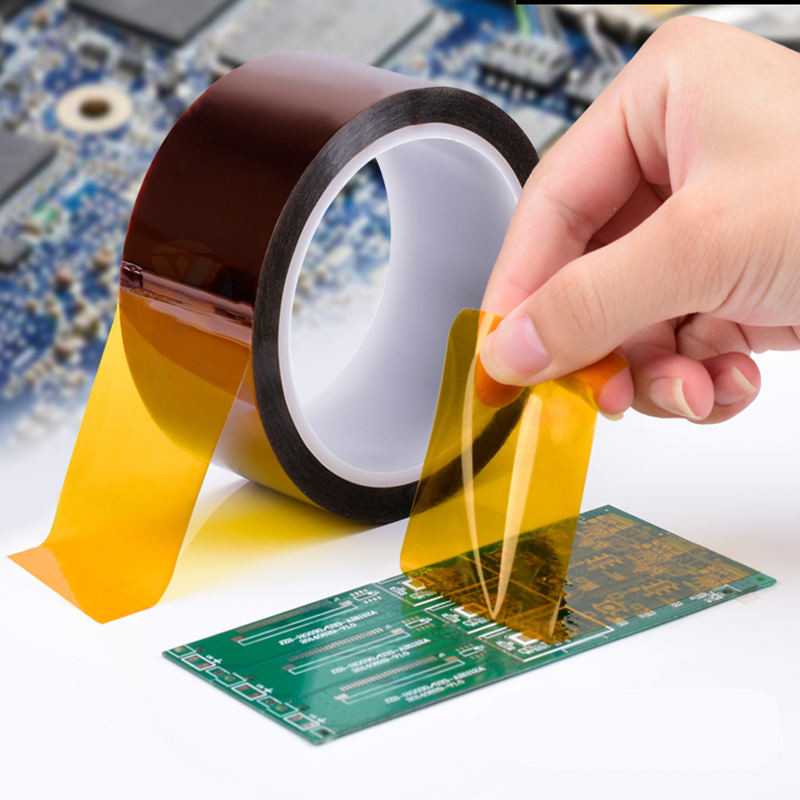

Suitable for electronic circuit board wave solder masking, protection of gold fingers and high-grade electrical insulation, motor insulation, and lithium battery positive and negative ear fixation
Features: Polyimide film tapes consists of a polyimide film and adhesive system that make it the ultimate in high temperature tapes. Polyimide tape has the ability to maintain its excellent physical, mechanical, and electrical properties over a wide temperature range and performs as well as any product at high temperatures. Polyimide tapes have excellent dielectric strength and remove cleanly leaving no residue.
Applications: Because of these properties, Polyimide tape such as Kapton tape, is used in various applications in electronic, automotive and general manufacturing industries. Polyimide tapes can either be amber or clear in color, and the film thickness ranges between 1 and 5 mils while the adhesive may range from 1 to 2 mils thick. It may be double sided, and the adhesive may be silicone or acrylic based. Anti-static polyimide tape is used in circuit board construction and can be used in electrical applications where static is an issue.
The ESD products manufactured and supplied by Shanghai Herzesd Industrial are the result of meticulous planning and technological excellence. Our products showcase a fine amalgamation of excellence, quality, innovation, and technology. A continuous upgradation is always at place to enhance the security features applicable at various stages and premises on ESD accessories. These products are long lasting and equipped with precision technology. We have a group of hard working personnel who keep detecting the machines for better security.
FAQ
Q:1, Why you need ESD protect for your production line?
♦ Electronic Components or assemblies at risk from electrostatic discharges (ESD) are among those sensitive elements which can be
destroyed or damaged if the permitted levels of current or impact energy are exceeded.
♦ As a rule, these are always semi-conducting components and most are also thick- and thin-film construction elements.This type of
construction element is mostly damaged through human mishandling. A human-being can charge several thousands of volts just by
walking. A discharge can be felt by humans from approximately 2000-3000 V, a current which is already well above the 'tolerance level'
of many ESD components.
♦ Before buying or implementing ESD safe products one needs implementing an ESD safe procedure according to theESD standards
IEC 61340 or ANSI S2020 which is the foundation of ESD preventive protective work and a greater guarantee of quality assurance.
♦ Besides our Anti-Static conductive ESD Workstations we offer an extensive range of
Antistatic ESD Chairs, Antistatic ESD Cleaning & Maintenance, Antistatic ESD Clothing, ESD Shoes ESD Footwear,Antistatic ESD
Flooring & Antistatic ESD Table Mats, ESD Safe Packaging, ESD Personal Grounding Materials, Anti-Static ESD Protective Storage & Warehousing Systems EPA, ESD Storage Boxes, ESD Test & Measuring Equipment, ESD Trainings, ESD Support & ESD Audits.
Q: 2, Why you choose HerzESD?
♦ HerzESD strives to serve our customers better by offering correct and clear explanatory answers. We try to do so, even when informing our customers better, means contradicting a more established but sometimes flawed opinions on the market. At HerzESD we pride ourselves on ensuring the only correct ESD solution.
♦ To continue this vision we need reliable ESD manufacturers and suppliers on which we can always count. HerzESD is a solid partner and together with our international partners,we stay strong and vigilant in regards to possible improvements or new solutions in tackling and controlling static electricity.
