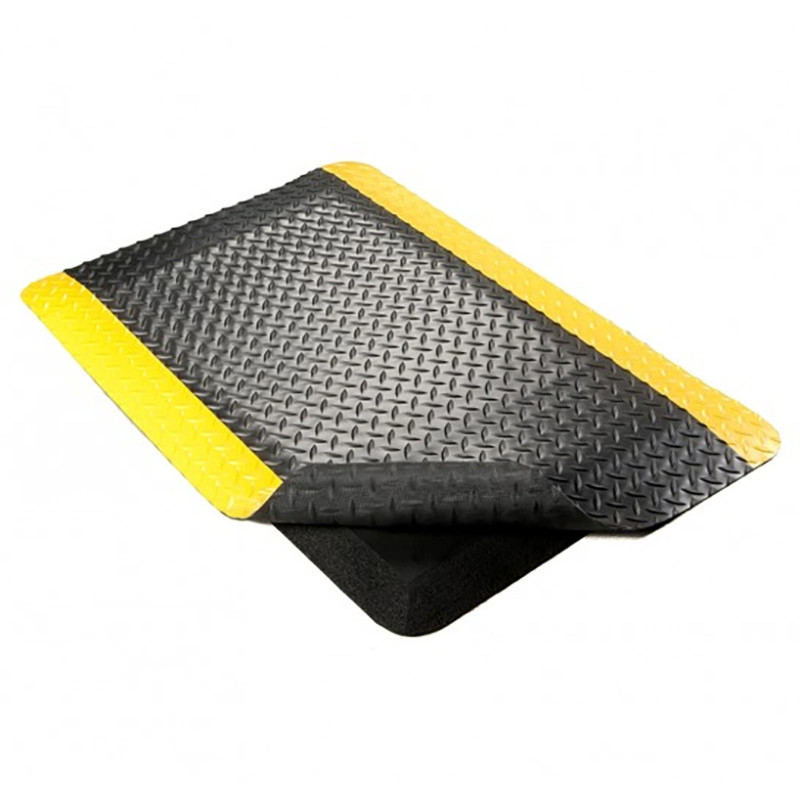

Anti-static PVC Floor Anti-fatigue Floor Mat ESD Industria Antifatigue Mat
Product Details:
| Place of Origin: | China |
| Brand Name: | Herzesd |
| Model Number: | Hz-418 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 - 99 Pieces |
|---|---|
| Price: | $18.00 |
| Packaging Details: | Carton on pallet |
| Supply Ability: | 10000 Piece/Pieces per Week |
|
Detail Information |
|||
| Features: | Anti-slip; Easy Clean; Durable | Material: | PVC+EVA/EPDM Foam+Rubber |
|---|---|---|---|
| Size: | Customized | Thickness: | 10mm-30mm |
| Color: | Black& Yellow; All Black; Blue; | Volume Resistance: | 10e6-10e9 Ohm |
| Usage: | Electronic Workshop | Product Name: | Anti Fatigue Cushioned Mat |
| Applications: | Work Shop/ Industrial/ Assembly Line | ||
| High Light: | Anti-fatigue PVC Floor,Anti-fatigue ESD PVC Floor Mat,Industria ESD PVC Floor Mat |
||
Product Description
| Model | Size(mm) | Material | Surface Resistance | Ground Resistance | Anti-fatigue | Note |
| Effect | ||||||
| HZ-950 | 610x460x15 | Good Natural Rubber | <107ohm | <107ohm | Best | |
| HZ-930 | 610x910x12.5 | Rubber Material | 108-109ohm | 108-109ohm | Good | Low cost |
| 610x450x12.5 | design | |||||
| HZ-418S | 610x910x17 | 2 layers: | 108-109ohm | 109-1010ohm | Better | |
| PVC+ Carbamic resin | ||||||
| HZ-418E | 610x910x18 | 3 layers: PVC + Carbamic resin + Conductive rubber. | 108-109ohm | 109-1010ohm | Better | |
| 610x450x18 | ||||||
| HZ-418B | 610x910x20 | 3 layers: PVC + EPDM + | 108-109ohm | 109-1010ohm | Better | Low cost |
| Conductive rubber. | design |
Features of antifatigue mats:

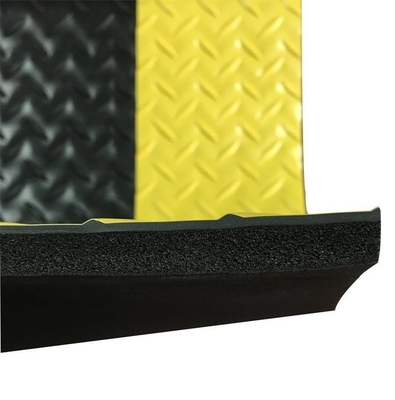

3 layers structure, surface is high strength PVC, middle layer is EPDM foam, bottom layer is conductive rubber
Size(mm): 610x910x18, other size can be customized.
Max. length: 20m, Max. width: 0.4-1.2m Thickness: 9-40mm
Color: Black or black & yellow
Surface resistance: 10E8-10E9 ohms (PVC layer)
Fit for electronic components manufacturers and static sensitive area.
The ESD products manufactured and supplied by Shanghai Herzesd Industrial are the result of meticulous planning and technological excellence. Our products showcase a fine amalgamation of excellence, quality, innovation, and technology. A continuous upgradation is always at place to enhance the security features applicable at various stages and premises on ESD accessories. These products are long lasting and equipped with precision technology. We have a group of hard working personnel who keep detecting the machines for better security.
