APET 0.075mm Esd Anti Static Bags For Sensitive Electronic Devices
Product Details:
Place of Origin: | China |
Brand Name: | Herzesd |
Model Number: | HZ-1301 |
Payment & Shipping Terms:
Minimum Order Quantity: | 5000 Piece/Pieces |
---|---|
Price: | $0.01 - $0.50 / Piece |
Packaging Details: | Bags, carton, film |
Supply Ability: | 100000 Piece/Pieces per Day |
Detail Information |
|||
Material: | APET/PE, APET/PE | Industrial Use: | Electronic Packing |
---|---|---|---|
Thickness: | 0.075mm Or Customized | Seal: | 5mm, 10mm |
Zip Lock: | Avaliable | Printing: | Customized Printing Accept |
Transparency: | Can Be Customized | Port: | Shanghai |
Highlight: | 0.075mm ESD Anti Static Bags,APET ESD Anti Static Bags,APET uline static shield bag |
Product Description

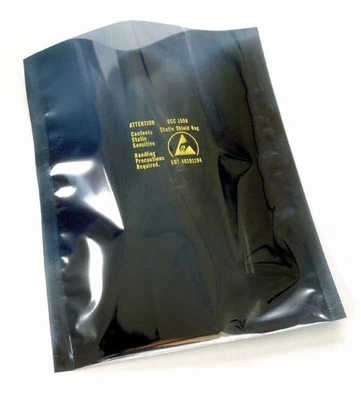

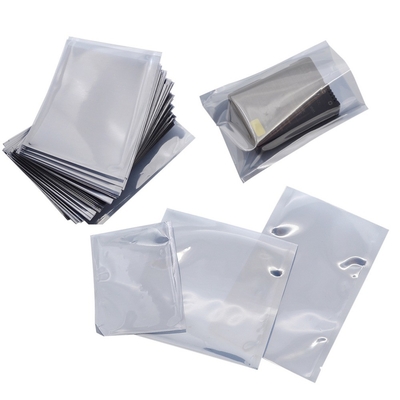

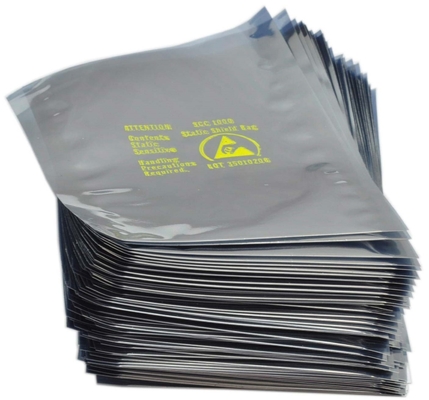

These transparent, metalized static shielding bags provide a static safe environment for sensitive electronic devices. Faraday cage effect of the metalized layer shields electronic devices from ESD and electrostatic fields. Bags are printed with ESD warning symbol and date coded for QC traceability. SCS 1000 static shielding bags are manufactured from a polyester, metal, polyethylene laminate. The polyester dielectric in concert with the metal layer provides discharge shielding. The exterior being static dissipative allow electrostatic charges to be removed when grounded.
Meets ANSI/ESD S20.20, Packaging standard ANSI/ESD S541 and Static Control Bag ANSI/ESD S11.4 Level 3
Bag is free of amines, silicones and heavy metals
Thickness: 2.8 mils, 0.075 mm +/- 10%
Model:HZ-1301
Metal layer shields products from electric energy inside
and prevents static build-up.
Four layer protection guards against charges inside and
out.
Semi transparent for easy content identification.
Surface resistance of 10e8-10e11Ω.
Custom sizes and print available on request.

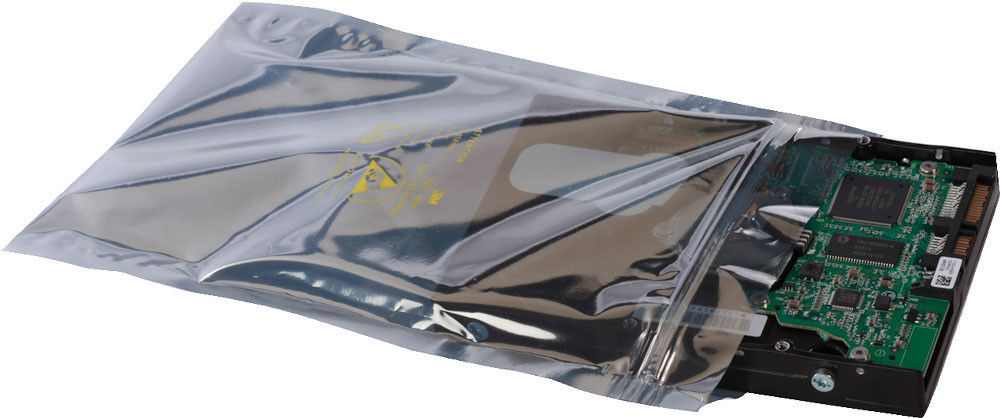

Suitable for packing electronic products which are
sensitive to static, eg PCB’s, Electronic Components etc.
Size | Customized avaliable |
Thickness | regular 0.075mm, customized avaliable |
printing | Customized |
Zip lick | available |
Seal | 5mm for small bag, 10mm for big bags |
The ESD products manufactured and supplied by Shanghai Herzesd Industrial are the result of meticulous planning and technological excellence. Our products showcase a fine amalgamation of excellence, quality, innovation, and technology. A continuous upgradation is always at place to enhance the security features applicable at various stages and premises on ESD accessories. These products are long lasting and equipped with precision technology. We have a group of hard working personnel who keep detecting the machines for better security.
1, Why you need ESD protect for your production line?
Electronic Components or assemblies at risk from electrostatic discharges (ESD)
are among those sensitive elements which can be destroyed or damaged if the permitted levels of current or impact energy are exceeded.
As a rule, these are always semi-conducting components and most are also thick- and thin-film construction elements.
This type of construction element is mostly damaged through human mishandling.
A human-being can charge several thousands of volts just by walking.
A discharge can be felt by humans from approximately 2000-3000 V,
a current which is already well above the 'tolerance level' of many ESD components.
Before buying or implementing ESD safe products one needs implementing an ESD safe procedure according to the
ESD standards IEC 61340 or ANSI S2020 which is the foundation of
ESD preventive protective work and a greater guarantee of quality assurance.
Besides our Anti-Static conductive ESD Workstations we offer an extensive range of
Antistatic ESD Chairs, Antistatic ESD Cleaning & Maintenance, Antistatic ESD Clothing, ESD Shoes ESD Footwear,
Antistatic ESD Flooring & Antistatic ESD Table Mats, ESD Safe Packaging, ESD Personal Grounding Materials,
Anti-Static ESD Protective Storage & Warehousing Systems EPA, ESD Storage Boxes,
ESD Test & Measuring Equipment, ESD Trainings, ESD Support & ESD Audits.
