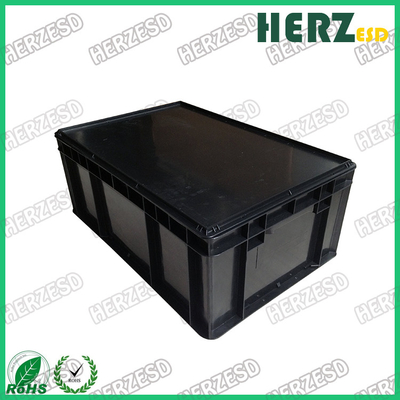

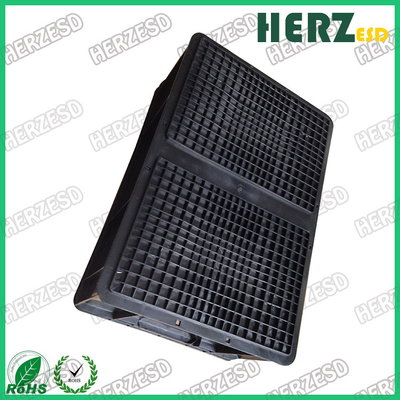

Antistatic Container ESD Component PCB Storage Box
Product Details:
| Place of Origin: | China |
| Brand Name: | Herzesd |
| Certification: | CE, Rosh |
| Model Number: | HZ-26434 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 3-15USD |
| Packaging Details: | Pallet with film |
| Delivery Time: | 5-7 days |
| Payment Terms: | TT |
| Supply Ability: | 1000 pcs/day |
|
Detail Information |
|||
| Material: | PP Plastic | Size: | 600*400*340mm/565*365*330mm |
|---|---|---|---|
| Suraface Resisatnce: | 10e4-10e6 Ohnm 10e6-10e9 Ohm | Color: | Black |
| Application: | To Storage The Electronic Componnets | Package: | Normally By Film Or By Pallet With Film |
| MOQ: | 50-100pcs | Production Time: | 3-5 Working Days |
| Cover: | Could Be Have, Cover Size: 600*400mm | Name: | ESD Storage Box |
| Highlight: | PCB Storage Box,Antistatic Container Storage Box,ESD Component Storage Box |
||
Product Description
1. It is wear resistant, moistureproof, heat insulation and shockproof, static electricity.
2. It is widely used in the loading, packing, storage and transportation of electronic components and products in the production process.
-
Anti-Static Material: Constructed from high-quality, durable plastic with inherent anti-static properties to prevent the buildup and discharge of static electricity.
-
Durable and Lightweight: Made from sturdy yet lightweight materials, these boxes are easy to handle and provide long-lasting protection.
-
Stackable Design: The boxes are designed for efficient storage and space-saving, featuring stackable dimensions that allow for easy organization.
-
Secure Closure: Equipped with a secure locking mechanism to ensure the contents are safely contained and protected from environmental contaminants.
Other different sizes; Notes:* Lid cover optional
| Model | Ext.dim.mm (L×W×H) | Int.dim.mm (L×W×H) | Model | Ext.dim.mm (L×W×H) | Int.dim.mm (L×W×H) | ||
| *HZ-26132 | 615x430x320 | 580x395x310 | *HZ-24928 | 495x370x285 | 465x345x275 | ||
| *HZ-26125 | 615x430x250 | 580x395x245 | *HZ-24922 | 495x370x230 | 465x345x220 | ||
| *HZ-26120 | 615x430x200 | 580x395x195 | *HZ-24916 | 495x370x165 | 465x345x160 | ||
| *HZ-26115 | 615x430x150 | 580x395x145 | *HZ-24912 | 495x370x125 | 465x345x120 | ||
| *HZ-26540 | 600x500x400 | 560x460x390 | *HZ-24328 | 400x300x280 | 365x265x275 | ||
| *HZ-26535 | 600x500x355 | 560x460x350 | *HZ-24323 | 400x300x230 | 365x265x220 | ||
| *HZ-26530 | 600x500x305 | 560x460x300 | *HZ-24317 | 400x300x170 | 365x265x165 | ||
| *HZ-26525 | 600x500x255 | 560x460x250 | *HZ-24315 | 400x300x148 | 365x265x135 | ||
| *HZ-26516 | 600x500x160 | 560x460x155 | *HZ-24312 | 400x300x120 | 365x265x115 | ||
| *HZ-26434 | 600x400x340 | 565x365x330 | HZ-23215 | 300x200x148 | 265x165x135 | ||
| *HZ-26428 | 600x400x280 | 565x365x270 | HZ-23212 | 300x200x120 | 265x165x115 | ||
| *HZ-26423 | 600x400x230 | 565x365x220 | HZ-26941 | 690x485x410 | 650x450x400 | ||
| *HZ-26417 | 600x400x170 | 565x365x160 | HZ-27418 | 700x450x180 | 665x415x170 | ||
| *HZ-26415 | 600x400x148 | 565x365x137 | HZ-26544 | 650x440x350 | 610x400x340 | ||
| *HZ-26412 | 600x400x120 | 565x365x110 | HZ-26640 | 660x400x165 | 620x365x160 | ||
| *HZ-25438 | 545x425x380 | 510x390x370 | HZ-25426 | 540x415x260 | 500x380x250 | ||
| *HZ-25430 | 545x425x305 | 510x390x300 | HZ-22107 | 480x350x175 | 440x320x165 | ||
| *HZ-25424 | 545x425x240 | 510x390x230 | HZ-24215 | 420x310x150 | 380x280x145 | ||
| *HZ-25415 | 545x425x150 | 510x390x145 | HZ-23613 | 360x270x135 | 320x240x125 | ||
| HZ-25030 | 500x310x300 | 465x270x290 | HZ-24822 | 480x355x220 | 445x318x210 | ||
| HZ-22150 | 510*345*185 | 464*300*175 | HZ-24832 | 480x355x320 | 445x318x310 | ||
| HZ-22132 | 720x560x380 | 680x515x370 | HZ-22136 | 560x430x145 | 515x350x140 | ||
| *HZ-22127 | 580x368x200 | 535x345x195 | HZ-22137 | 585x405x175 | 538x360x170 | ||
| *HZ-22128 | 580x368x165 | 535x345x155 | HZ-22138 | 530x370x205 | 490x330x200 | ||
| Model | Size(mm) | Model | Size(mm) | Model | Size(mm) | ||
| HZ-24635 | 465×350×15 | HZ-26050 | 600×500×15 | HZ-25139 | 510×390×15 | ||
| HZ-25839 | 580×390×15 | HZ-26040 | 600×400×15 | HZ-25439 | 540×390×15 | ||
| HZ-24030 | 400×300×10 | ESD Box Lids’ Sizes | |||||
