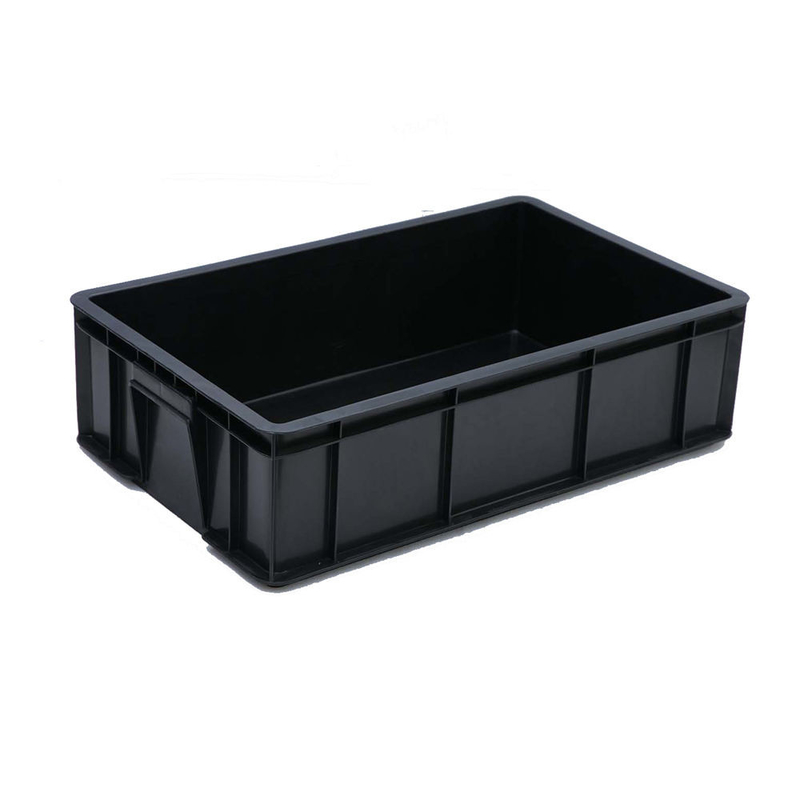

ESD Conductive Bin Box Components Storage Box Antistatic Crate
Product Details:
| Place of Origin: | China |
| Brand Name: | Herzesd |
| Certification: | CE, Rosh |
| Model Number: | HZ-26434 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 3-15USD |
| Packaging Details: | Pallet with film |
| Delivery Time: | 5-7 days |
| Payment Terms: | TT |
| Supply Ability: | 1000 pcs/day |
|
Detail Information |
|||
| Material: | PP Plastic | Size: | 600*400*340mm/565*365*330mm |
|---|---|---|---|
| Suraface Resisatnce: | 10e4-10e6 Ohnm 10e6-10e9 Ohm | Color: | Black |
| Application: | To Storage The Electronic Componnets | Package: | Normally By Film Or By Pallet With Film |
| MOQ: | 50-100pcs | Production Time: | 3-5 Working Days |
| Cover: | Could Be Have, Cover Size: 600*400mm | Name: | ESD Storage Box |
| Highlight: | Components Storage Bin Box,ESD Conductive Bin Box,Antistatic Crate Bin Box |
||
Product Description
Durable ESD PP Injection box For Industry
1. It is wear resistant, moistureproof, heat insulation and shockproof, static electricity.
2. It is widely used in the loading, packing, storage and transportation of electronic components and products in the production process.
3. Anti-static circulation boxes are designed and made according to the size provided by customers, so as to achieve the most reasonable loading and multiple boxes can be overlapped.
Conductive material allows the charge to move very fast and has a low resistance.
Static dissipative material allows the charge to move quickly but slower than conductive material.
An insulative product has no movement or a very high resistance.
If parts are sensitive to electrical charges they should be stored in a conductive container.

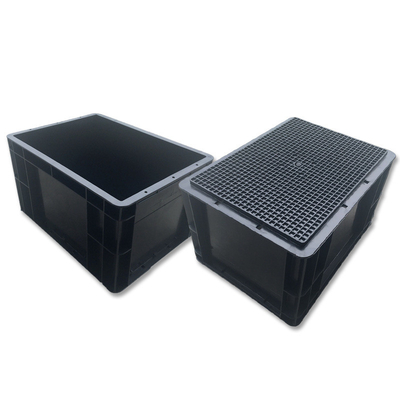

Other different sizes; Notes:* Lid cover optional
| Model | Ext.dim.mm (L×W×H) | Int.dim.mm (L×W×H) | Model | Ext.dim.mm (L×W×H) | Int.dim.mm (L×W×H) | ||
| *HZ-26132 | 615x430x320 | 580x395x310 | *HZ-24928 | 495x370x285 | 465x345x275 | ||
| *HZ-26125 | 615x430x250 | 580x395x245 | *HZ-24922 | 495x370x230 | 465x345x220 | ||
| *HZ-26120 | 615x430x200 | 580x395x195 | *HZ-24916 | 495x370x165 | 465x345x160 | ||
| *HZ-26115 | 615x430x150 | 580x395x145 | *HZ-24912 | 495x370x125 | 465x345x120 | ||
| *HZ-26540 | 600x500x400 | 560x460x390 | *HZ-24328 | 400x300x280 | 365x265x275 | ||
| *HZ-26535 | 600x500x355 | 560x460x350 | *HZ-24323 | 400x300x230 | 365x265x220 | ||
| *HZ-26530 | 600x500x305 | 560x460x300 | *HZ-24317 | 400x300x170 | 365x265x165 | ||
| *HZ-26525 | 600x500x255 | 560x460x250 | *HZ-24315 | 400x300x148 | 365x265x135 | ||
| *HZ-26516 | 600x500x160 | 560x460x155 | *HZ-24312 | 400x300x120 | 365x265x115 | ||
| *HZ-26434 | 600x400x340 | 565x365x330 | HZ-23215 | 300x200x148 | 265x165x135 | ||
| *HZ-26428 | 600x400x280 | 565x365x270 | HZ-23212 | 300x200x120 | 265x165x115 | ||
| *HZ-26423 | 600x400x230 | 565x365x220 | HZ-26941 | 690x485x410 | 650x450x400 | ||
| *HZ-26417 | 600x400x170 | 565x365x160 | HZ-27418 | 700x450x180 | 665x415x170 | ||
| *HZ-26415 | 600x400x148 | 565x365x137 | HZ-26544 | 650x440x350 | 610x400x340 | ||
| *HZ-26412 | 600x400x120 | 565x365x110 | HZ-26640 | 660x400x165 | 620x365x160 | ||
| *HZ-25438 | 545x425x380 | 510x390x370 | HZ-25426 | 540x415x260 | 500x380x250 | ||
| *HZ-25430 | 545x425x305 | 510x390x300 | HZ-22107 | 480x350x175 | 440x320x165 | ||
| *HZ-25424 | 545x425x240 | 510x390x230 | HZ-24215 | 420x310x150 | 380x280x145 | ||
| *HZ-25415 | 545x425x150 | 510x390x145 | HZ-23613 | 360x270x135 | 320x240x125 | ||
| HZ-25030 | 500x310x300 | 465x270x290 | HZ-24822 | 480x355x220 | 445x318x210 | ||
| HZ-22150 | 510*345*185 | 464*300*175 | HZ-24832 | 480x355x320 | 445x318x310 | ||
| HZ-22132 | 720x560x380 | 680x515x370 | HZ-22136 | 560x430x145 | 515x350x140 | ||
| *HZ-22127 | 580x368x200 | 535x345x195 | HZ-22137 | 585x405x175 | 538x360x170 | ||
| *HZ-22128 | 580x368x165 | 535x345x155 | HZ-22138 | 530x370x205 | 490x330x200 | ||
| Model | Size(mm) | Model | Size(mm) | Model | Size(mm) | ||
| HZ-24635 | 465×350×15 | HZ-26050 | 600×500×15 | HZ-25139 | 510×390×15 | ||
| HZ-25839 | 580×390×15 | HZ-26040 | 600×400×15 | HZ-25439 | 540×390×15 | ||
| HZ-24030 | 400×300×10 | ESD Box Lids’ Sizes | |||||
