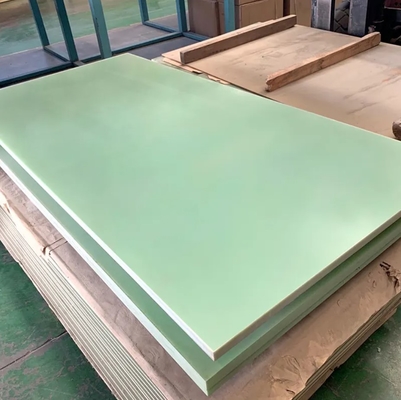

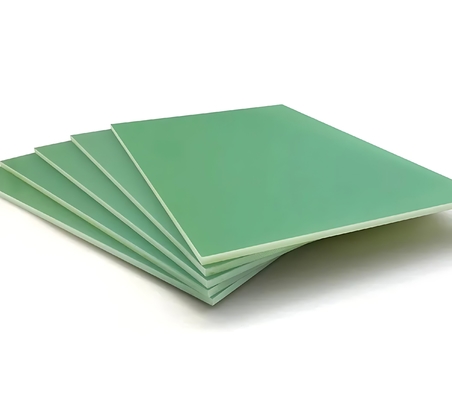

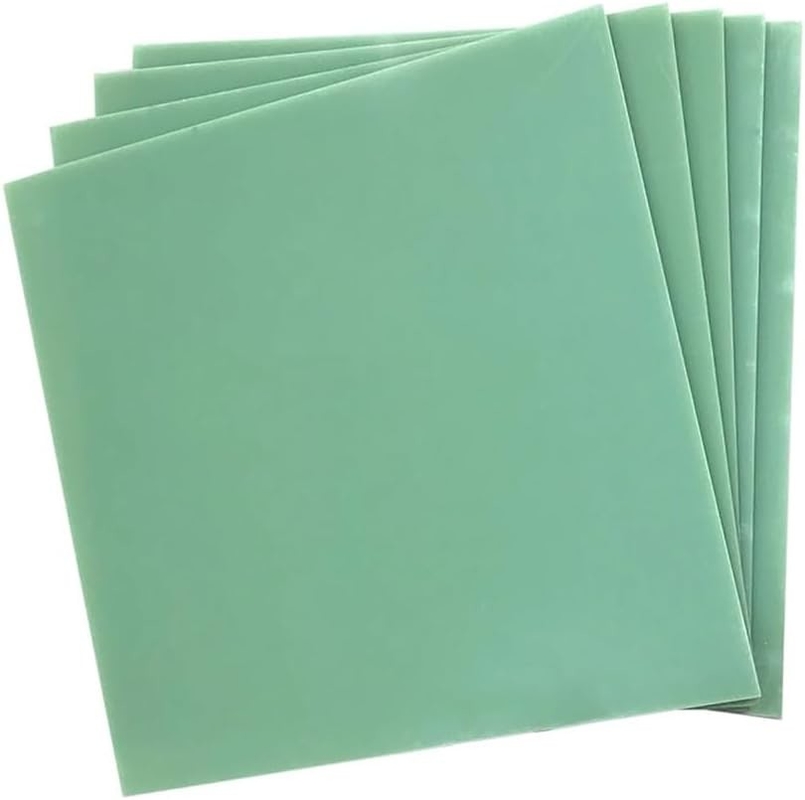

FR4 Epoxy Fiberglass Sheet 1020mm x 1220mm in Thicknesses 3/4/5mm
Product Details:
| Brand Name: | Herzesd |
| Certification: | Rohs |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 Kgs |
|---|---|
| Price: | USD+8-10+KGS |
| Packaging Details: | Pallet or Wooden Crate |
| Delivery Time: | 5-7 work days |
| Supply Ability: | 1000+KGS+5 days |
|
Detail Information |
|||
| Thickness: | 3/ 4/ 5/ 6/ 8 /10 /12 /15 /20 /25 /30 /35 /40mm | Size: | 1020mm X1220mm |
|---|---|---|---|
| Material: | Fiber Glass, Epoxy Resin | Product Name: | FR4 Epoxy Fiberglass Sheet |
| Application: | Electronics/Industrial /Industrial | ||
| Highlight: | FR4 Epoxy Fiberglass Sheet,FR4 Epoxy Fiberglass Sheet 1020mm x 1220mm |
||
Product Description
Description
- Made from high-quality fiberglass and epoxy resin, G10 FR4 offers exceptional mechanical strength, excellent insulation properties, and high heat resistance. Ideal for applications in electronics, electrical equipment, and industrial machinery.
- With stable performance and compliance with international quality standards, it can be customized to meet specific size and shape requirements.
G10 fiberglass boards are made of a special glass epoxy laminate that has extremely high strength.
G10 fiberglass is used in marine applications due to its superior strength, moisture resistance, and excellent fire and electrical insulation.
Key Features
- Temperature: Up to +120°C continuous (+130°C intermittent).
- Good mechanical and electrical characteristics.
- Good chemical resistance.
- High strength.
Shipment:
Data sheet
Size:1020mm x1220mm, can be customized size
Thickness: 0.3mm - 50mm; Special thickness can be customized
| Properties/Items | Test Method | Unit | HLD-B002 | HLD-B003 | |
| Physical Data | Specific Gravity/Density | g/m³ | 2.0-2.1 | 2.0-2.1 | |
| Color | Light Green | Light Green | |||
| Temperature Index | ℃ | 120 | 120 | ||
| Water Absorption | E-24/50+D-24/23 | % | 0.07-0.16 | 0.08-0.2 | |
| Mechanical properties | Bending Strength | A | Mpa | ≥440 | ≥400 |
| Impact strength | A | kJ/㎡ | ≥90 | ≥70 | |
| Rockwell Hardness | A | M | 110 | 90 | |
| Compressive Strength | A | Mpa | 340-440 | 280-330 | |
| 290-390 | 180-230 | ||||
| Electrical Data | Dielectric strength | 2mm, in oil | KV/mm | ≥14 | ≥14 |
| 2mm, in oil | KV | 40 | 40 | ||
| Unit resistivity | C-96/20/65 | Ω.cm | ≥ | ≥ | |
| C-96/20/65+C-96/40/90 | Ω | ≥ | ≥ |
