ESD Entry Access Control System for Electronic Factory
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | herzesd |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | CN¥20,993.70 |
|
Detail Information |
|||
| Working Hours: | Unlimited | Communication: | TCP/IP |
|---|---|---|---|
| Wrist Strap Range: | 100K ~100MΩ | Footwear Range: | 100K~1GΩ |
| External Adaptor: | AC/DC Power Adapter | Operating Voltage: | DC 12V±10%,≥3.3A |
| Cable Length: | 1.5m | Operating Temperature: | 21℃~30℃ For 1 Gigohm Test/5℃~30℃ For All Other Test Limits |
| Dimension: | 88*135*42mm(L*W*H) | Weight: | 1.1kg |
| Touch Screen: | 7-inch Color | CPU: | 32-bit 4-core |
| Processor Speed: | 4X1GHZ | Memory: | DDR3 2G |
| Storage: | EMMC FLASH 8G | ||
| Highlight: | ESD entry access control system,electronic factory ESD system,ESD safe access control |
||
Product Description
Product Description

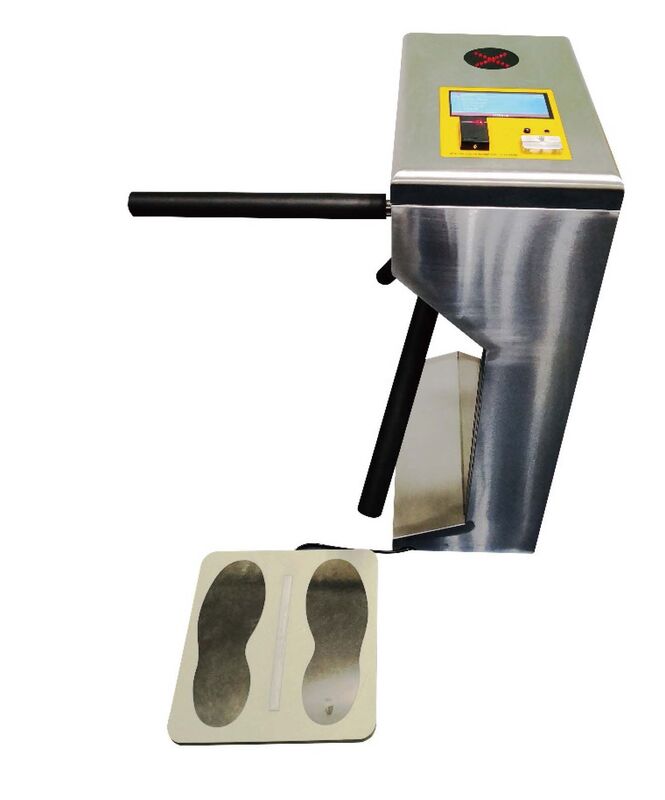

The HZ-6809 ESD Access Control System is designed for fast, frequent, and accurate testing of
ESD personnel grounding items. Its unique design embeds an ESD tester, computer clock,
touch screen display, IC / ID card reader or barcode scanner, Ethernet module etc. into a
compact stainless steel enclosure.

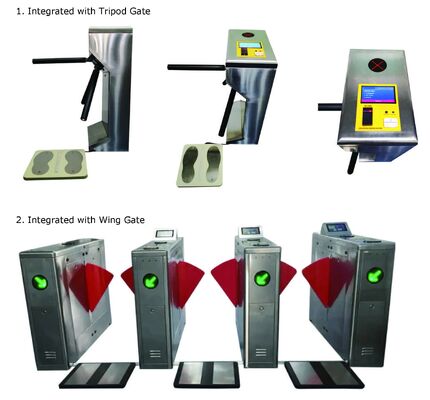

This system can be worked with tripod turnstile, swing gate, flap gate, electronic lock & air
shower room. In addition, it could provide basic ESD testing management, stop operators
entering EPA without ESD testing.
What’s more, test results are electronically stored in the system and easily downloaded as
attendance management, which has the function of distinguishing and setting up different
attendance statement. It will automatically store 500,000 testing results while software is
closed and PC is off-line.
It meets the requirements of the ANSI/ESD S20.20 & IEC 61340 in the USA and Europe.
Main Features

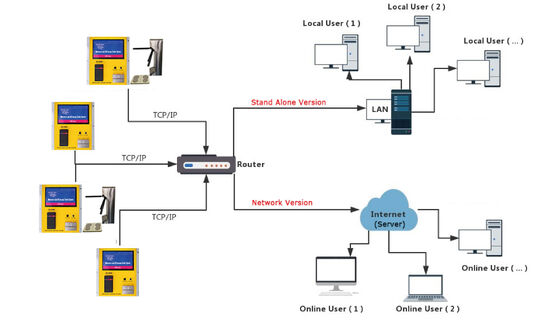

1. Communication: TCP/IP
2. Built with a solid-state test button, to enhance a longer life span of the test button

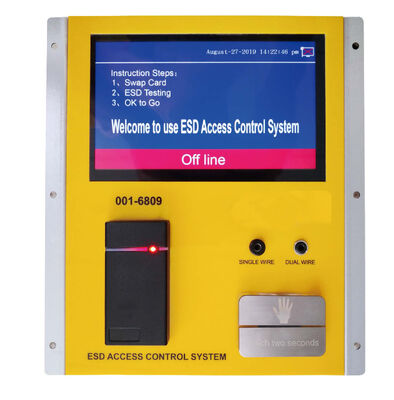

3. 7” Touch Screen shows: Time, Date, Position, Department, Employee ID, Name, Group,
Tested Item and detailed resistance of wrist strap, footwear, ESD garment
4. Basic Permission Set Up:
Role Number | Role Name | VIP | Footwear | Single Wire WS | Dual Wire WS | ESD Garment |
01 | Single Wire WS | 1 | 1 | 0 | 1 | 1 |
02 | Dual Wire WS | 1 | 1 | 1 | 0 | 1 |
03 | Single WS + Footwear | 1 | 0 | 0 | 1 | 1 |
04 | Dual WS + Footwear | 1 | 0 | 1 | 0 | 1 |
05 | ESD Footwear | 1 | 0 | 1 | 1 | 1 |
06 | ESD Garment | 1 | 1 | 0 | 1 | 0 |
07 | ESD Garment + Footwear | 1 | 0 | 1 | 1 | 0 |
08 | VIP | 0 | 1 | 1 | 1 | 1 |
5. After swiping the card (or barcode), system will be automatically reset if not going through
in limited pass time.
6. ESD Testing Steps

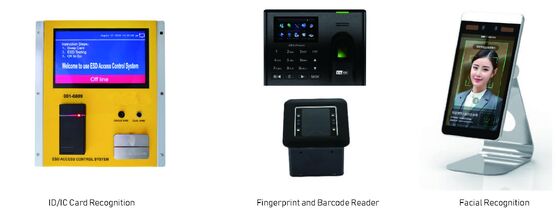

1.) Swipe the card to ensure the legal permission of card or barcode. (Finger print / Palm Print /
Facial recognition can also be one of the ways to give the legal permission)
2.) To begin the test, use your finger to bridge the test switch’s upper and down metal
contacts. Hold your finger down until the test results are displayed on the touchscreen
3.) DO NOT touch any other metal while performing your test as this will affect your results.
4.) ESD testing result: Green arrow with voice announce means Testing Pass, Red arrow with
voice & light instruction means Testing Fail.
Notes: When performing a footwear test, be sure to place both feet on the dual foot plate (one
foot per plate). Keep the foot-plate clean with 99% isopropyl alcohol when using the 1 Gigohm
high test limit. A dirty foot plate could yield a false pass. When performing a wrist strap test, be
sure to completely plug in the wrist cord into the tester’s jack.
Hardware Features
*7-inch Color Touch Screen Display
*Single-Wire and Dual-Wire Wrist Strap Testing Heel Strap and ESD Shoes Testing
*IC (ID) Card Reader (or Embedded Barcode Scanner)
*Ethernet Module for Network Communication
*Dual Footplate for Independent Footwear
*Testing 27VDC Testing
The CPU of device is a 32-bit 4-core processor with the main frequencies of 4X1GHZ
and DDR3 2G EMMC FLASH 8G, which supports a variety of screen interface access
equipment, in order to meet the needs of the high-speed development of enterprises,
the control part has a number of development interfaces, four-bit USB interface 2
RS485, 2 232, and a HIDM high-definition interface.
300,000 ID / IC card permissions can be stored, in the mean time, the tester can also
store 500,000 testing records when offline.
item | value |
Place of Origin | Shanghai, China |
Brand Name | Herzesd |
Working hours | Unlimited |
Communication | TCP/IP |
Testing range for Wrist Strap | 100K ~100MΩ |
Testing range for Footwear | 100K~1GΩ |
External Adaptor | AC/DC Power Adapter |
Operating voltage | DC 12V±10%,≥3.3A |
Cable Length | 1.5m |
Operating Temperature | 21℃~30℃ for 1 Gigohm test/5℃~30℃ for all other test limits |
Dimension | 88*135*42mm(L*W*H) |
Weight | 1.1kg |
