ESD Packing Foam Custom Shape Conductive PU Sheets 2-500mm Thickness 10^3-10^6 Ω for Electronics
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | HERZESD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | $15-20 |
| Payment Terms: | L/C, T/T |
|
Detail Information |
|||
| Material: | PU Foam | Color: | Black |
|---|---|---|---|
| Thickness: | 2-500mm | Surface Resistance: | 10^3-10^6 Ω |
| Volume Resistance: | 10^3-10^6 Ωcm | Density: | 25-27Kg/m3 |
| Conductive Model: | HZ-1203A | Semi-conductive Model: | HZ-1203S |
| Dissipative Model: | HZ-1203D | Conductive Color: | Black |
| Semi-conductive Color: | Black | Dissipative Color: | Black/Pink |
| Conductive Surface Resistivity: | 10^3-10^6Ω | Semi-conductive Surface Resistivity: | 10^6-10^9 Ω |
| Dissipative Surface Resistivity: | 10^9-10^11 Ω | ||
| Highlight: | ESD foam sheets conductive PU,custom shape ESD packing foam,conductive foam sheets for electronics |
||
Product Description

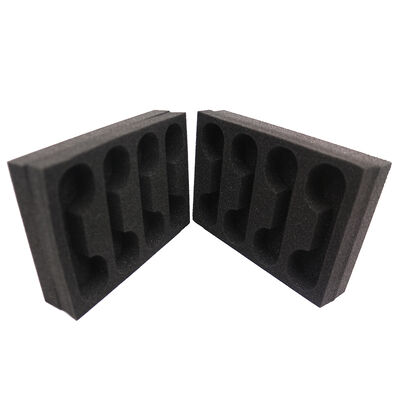

Customized Shape ESD Conductive/Antistatic PU Foam Sheets for Electronic Component Packing
Technical Specifications
| Items | Conductive | Semi-conductive | Dissipative |
|---|---|---|---|
| Model | HZ-1203A | HZ-1203S | HZ-1203D |
| Color | Black | Black | Black/Pink |
| Density | 25-27Kg/m³ | ||
| Surface Resistivity | 10³-10⁶Ω | 10⁶-10⁹Ω | 10⁹-10¹¹Ω |
| Volume Resistivity | 10³-10⁶Ω.cm | 10⁶-10⁹Ω.cm | 10⁹-10¹¹Ω.cm |
Product Advantages
High Quality ESD Single Side Glued Polyurethane Anti-static PU Foam provides optimal protection for electronic products ranging from computers to automotive parts. It offers superior cushioning while effectively eliminating and absorbing electrical charges, vibrations, and electro-shock static to prevent internal damage during shipping and handling.
Why ESD Protection is Essential for Your Production Line
Electronic components and assemblies vulnerable to electrostatic discharges (ESD) can be destroyed when exposed to current or impact energy beyond their tolerance levels. These sensitive elements, primarily semi-conducting components and thick/thin-film construction elements, are often damaged through human handling. Humans can accumulate several thousand volts simply by walking, with discharges perceptible at 2000-3000V - already exceeding many components' tolerance levels.
Before implementing ESD-safe products, establish an ESD-safe procedure following ESD standards IEC 61340 or ANSI S2020. These standards form the foundation of ESD preventive protection and quality assurance.
Why Choose HerzESD
HerzESD is committed to providing accurate information and optimal ESD solutions, even when it means challenging established but potentially flawed market opinions. We pride ourselves on delivering only correct ESD solutions through reliable manufacturing partnerships, continuously improving our offerings to better control static electricity in industrial applications.
