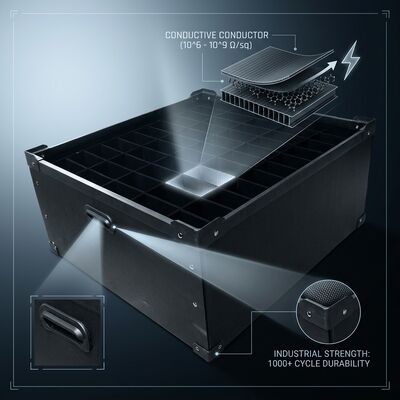

Anti Static PP Corrugated Sheet Conductive ESD Plastic Hollow Board Custom Cut For Box Insert Partition

This anti static PP corrugated sheet is manufactured from polypropylene hollow board with an ESD additive that delivers controlled electrical resistance across three standard grades, covering antistatic, static dissipative, and conductive protection ranges. The fluted structure gives the board exceptional stiffness at low weight, while the smooth outer walls can be printed, die cut, folded, and heat sealed into boxes, dividers, and trays. Electronics manufacturers use the material to build custom packaging that protects PCB assemblies and components from both mechanical damage and electrostatic discharge.

The sheet is supplied in black as standard and can be cut to exact customer dimensions with clean edges that do not shed particles. Because the antistatic property is compounded into the polypropylene resin rather than applied as a coating, the performance remains stable after cutting, folding, washing, and repeated reuse. This combination of durability, light weight, and reliable ESD performance makes PP corrugated board a cost effective alternative to solid plastic sheets and cardboard for controlled packaging applications.

• Three ESD resistance grades: antistatic 10e9 to 10e11 ohm, static dissipative 10e6 to 10e8 ohm, and conductive 10e3 to 10e5 ohm can be selected to match the sensitivity of the stored product.

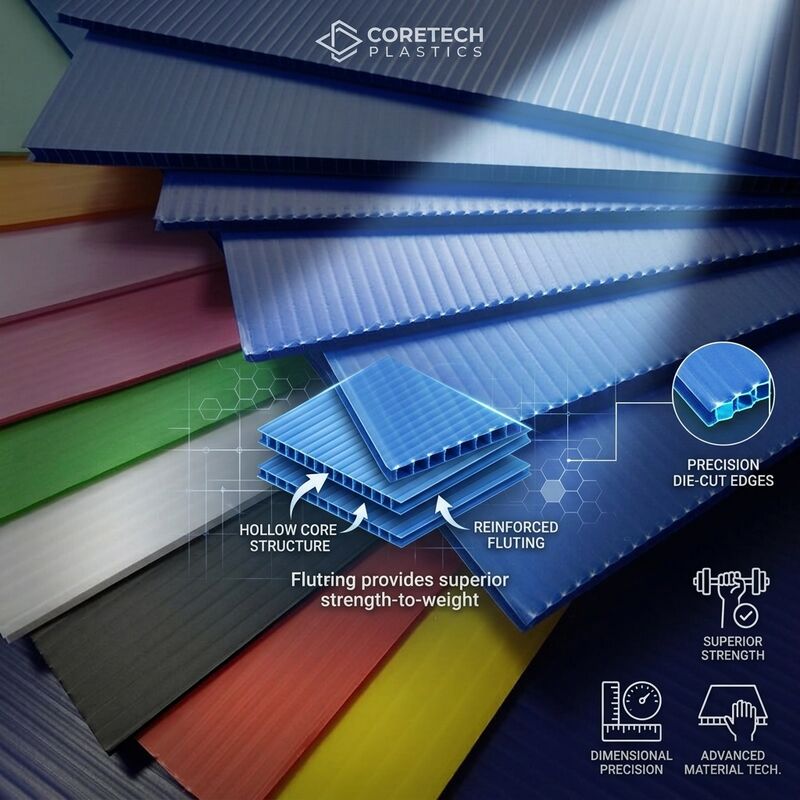

• Lightweight hollow board structure: the fluted core provides high bending strength with low material weight, reducing shipping cost and making manual handling easy.
• Easy fabrication: the sheet can be die cut, guillotined, creased, folded, heat welded, and printed, allowing fast in-house production of boxes and partitions.
• Permanent ESD protection: conductive additives are compounded into the PP resin, so resistance values do not degrade after cutting, cleaning, or long service life.
• Clean and particle controlled: smooth non-shedding surfaces are suitable for packaging precision components, and the material is resistant to moisture, oil, and mild chemicals.
• Reusable and recyclable: corrugated PP packaging can be folded flat for return logistics and reused hundreds of times, supporting sustainable packaging programs.

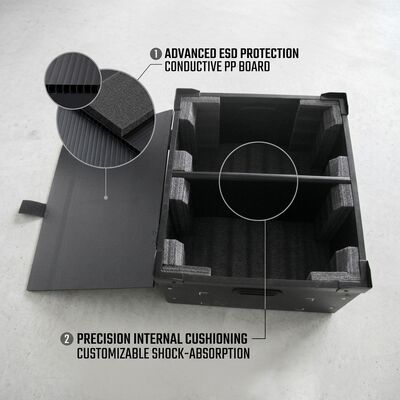

ESD PP corrugated sheets are used to fabricate box inserts, layer pads, partitions, and divider sets inside shipping cartons and storage totes for electronic components. Typical uses include PCB transit packaging, IC tray separators, connector and relay compartment dividers, keyboard and display panel protectors, and stackable divider trays for hardware kits. The board is also folded into reusable mailer boxes and shelf bins for warehouses and clean production areas where static control is required.

Because the sheet is supplied flat, customers can cut and fold packaging on site to fit changing product dimensions, which is especially useful for prototyping new products or handling irregular shaped assemblies. For high volume requirements, we deliver ready-to-fold blanks with crease lines and die cut handles to speed up final assembly.

Custom thickness, sheet dimensions, flute direction, colors, and printed logos are available. Send us the box design or the internal dimensions of your container, and our team will recommend the correct sheet grade and thickness for the load. Samples of each resistance grade can be supplied for testing before volume production, and tooling for die cut blanks can be arranged for repeat orders.

Sheets are packed in protective film bundles with edge guards and palletized for export shipment to prevent scratches and corner damage. Each batch is checked for surface resistance, thickness, and dimensional accuracy, and inspection reports are available on request. As a factory direct ESD packaging supplier, we offer fast lead times and competitive pricing for both standard sheets and fully customized blanks. Contact us with your required grade, size, and quantity to receive a quotation and free samples.
