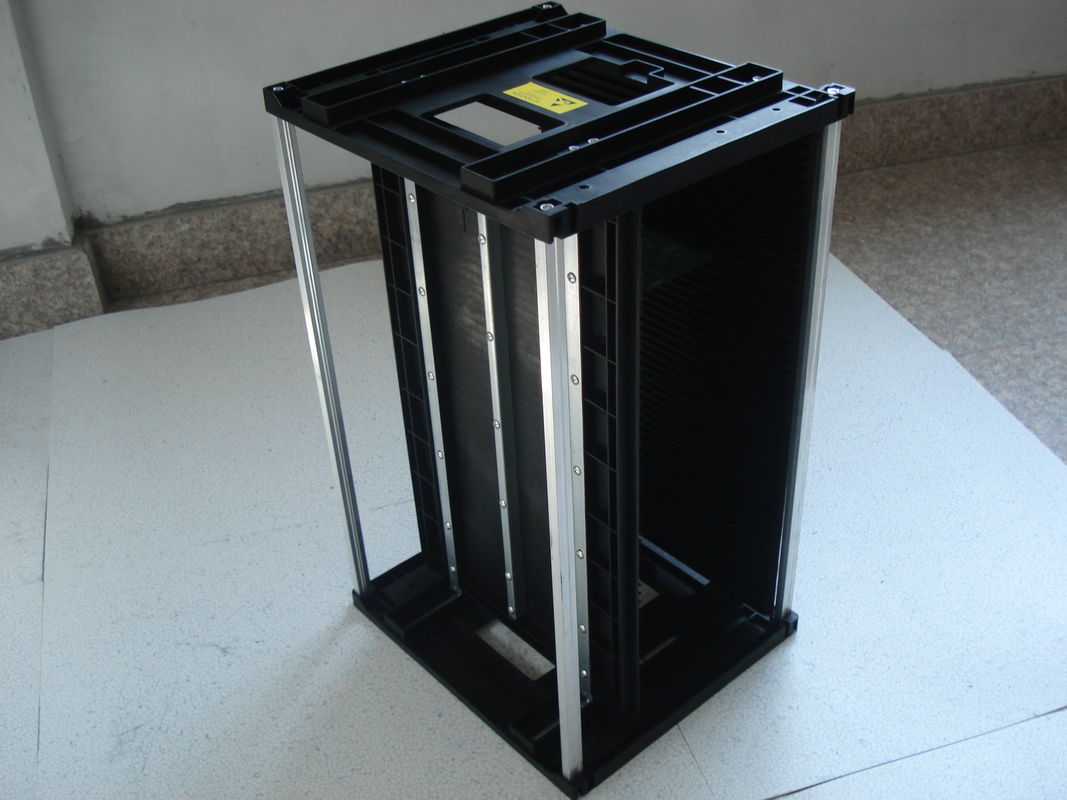

Weight 4.0KG ESD Magazine Rack Small Size 355 X 315 X 305mm ISO9001 Approved
Product Details:
| Place of Origin: | China |
| Brand Name: | Herzesd |
| Certification: | CE, Rosh |
| Model Number: | HZ-2601 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 sets |
|---|---|
| Price: | 20-70USD |
| Packaging Details: | carton with pallet |
| Delivery Time: | 3-5 days |
| Payment Terms: | TT |
| Supply Ability: | 1000sets/week |
|
Detail Information |
|||
| Size: | 355x315x305mm | Slot: | Depth 3.5mm, Width 7mm, Pitch 10mm |
|---|---|---|---|
| Capacity: | 25pcs | PCB Size: | 355×(80－250)mm |
| Name: | ESD Magazine Rack | Weight: | 4.0KG |
| Highlight: | pcb magazine rack,smt magazine rack,ISO9001 Approved ESD Magazine Rack |
||
Product Description
HZ-2602 High Quality Small size ESD SMT Magazine Racks 355x315x305mm
Detailed description
HZ-2602 Small size ESD Magazine Rack 355x315x305mm
Material: Conductive PP /PPE, Zinc Coating Steel, Aluminium Alloy
Application:
- Store and logistic PCB, Electronic components
- ESD Protection on SMT, SMD , Semiconductor industrial
- Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .
|
Description |
HZ-2601 HZ-2602 |
|
Contour Size |
(L×W×H)mm: 355x315x305 |
|
Storage slot |
51pcs of Plates can be stored |
|
Thespecification ofPCB plates |
355×(80－250)mm |
|
Guide slot of side plate |
Depth 3.5mm, Width 7mm, Pitch 10mm |
|
Material |
Top and bottom Base is plastic base |
|
Fix method |
Screw adjustable |
|
Weight |
4.0KG |
|
Surface Resistance |
103－109 |
ESD PCB Magazine rack size avaliable
| #1 | #2 | #3 | Outer Dimension | Card Guide | Slots | Wight | |||||||||
| Ref. Position | (kg) | ||||||||||||||
| Model No. | Base | AJ Method | Temp | L | W | H | AJ | C | D | E | P | A | B | ||
| HZ-2601 | PP | Screw Adjust. | 80°C | 355 | 315 | 580 | 80-250 | 353 | 3.5 | 7 | 10 | 34 | 34 | 50 | 5 |
| HZ-2602 | PP | Screw Adjust. | 80°C | 355 | 315 | 305 | 80-250 | 353 | 3.5 | 7 | 10 | 34 | 35.5 | 25 | 3.4 |
| HZ-2603 | Metal | Screw/ | 80°C | 355 | 320 | 563 | 50-250 | 353 | 3 | 5.5 | 10 | 34 | 34 | 50 | 5 |
| Gear Track | |||||||||||||||
| HZ-2604 | PP | Gear Track | 80°C | 355 | 320 | 563 | 50-250 | 353 | 3 | 5.5 | 10 | 34 | 34 | 50 | 4.5 |
| HZ-2605 | Metal | Screw/ | 80°C | 355 | 320 | 563 | 50-250 | 353 | 3 | 5.5 | 10 | 34 | 34 | 50 | 6.5 |
| Gear Track | |||||||||||||||
| HZ-2606 | PP | Gear Track | 80°C | 355 | 320 | 563 | 50-250 | 353 | 3 | 5.5 | 10 | 34 | 34 | 50 | 6 |
| HZ-2607 | Metal | Screw/ | 80°C | 460 | 400 | 563 | 50-330 | 460 | 4 | 5.5 | 10 | 34 | 34 | 50 | 8 |
| Gear Track | |||||||||||||||
| HZ-2608 | Metal | Screw/ | 80°C | 535 | 460 | 570 | 50-390 | 530 | 4 | 5.5 | 10 | 34 | 37 | 50 | 10.5 |
| Gear Track | |||||||||||||||
| HZ-2609 | Metal | Screw/ | 80°C | 535 | 530 | 570 | 120-460 | 530 | 4 | 5.5 | 10 | 34 | 38 | 50 | 12 |
| Gear Track | |||||||||||||||
| HZ-2610 | Metal | Screw Adjust. | 80°C | 630 | 530 | 570 | 50-460 | 630 | 3.5 | 6.5 | 10 | 34 | 37 | 50 | 13 |
| HZ-2611 | PP | Chain Track | 80°C | 355 | 320 | 560 | 50-250 | 353 | 3 | 4.5 | 10 | 34 | 34 | 50 | 6 |
| HZ-2612 | Metal | Screw/ | 550°C | 355 | 320 | 563 | 80-250 | 355 | 3 | 8 | 10 | 34 | 34 | 50 | 6.8 |
| Gear Track | |||||||||||||||
| HZ-2613 | Metal | Screw/ | 80°C | 400 | 320 | 563 | 50-250 | 400 | 3 | 8 | 10 | 34 | 34 | 50 | 6 |
| Gear Track | |||||||||||||||
