Anti Static Aluminum Alloy ESD SMT Magazine metal Rack Size 355 * 320 * 563 mm

Anti Static Aluminum Alloy ESD SMT Magazine metal Rack Size 355 * 320 * 563 mm

Product Details:

Place of Origin: China
Brand Name: Herzesd
Certification: CE, Rosh
Model Number: HZ-2614

Payment & Shipping Terms:

Minimum Order Quantity: 10 sets
Price: 20-70USD
Packaging Details: carton with pallet
Delivery Time: 3-5 days
Payment Terms: TT
Supply Ability: 1000sets/week
Get Best Price Contact Now

Detail Information

Description: HZ-2612 Contour Size: (L×W×H)mm: 355*320*563
Storage Slot: 50pcs Of Plates Can Be Stored Size Of PCB Plates: 355*(80-250)mm
Guide Slot Of Side Plate: Depth 3mm, Width 8mm, Pitch 10mm Material: Top And Bottom Base Are Metal Base
Fix Method: Screw Or Gear Track Adjustable Side Plate: Five Pieces Assembled
Weight: 6.8KG Temperature: 200℃ And 120℃ Are Available.
High Light:

pcb magazine rack

,

adjustable magazine rack

Product Description

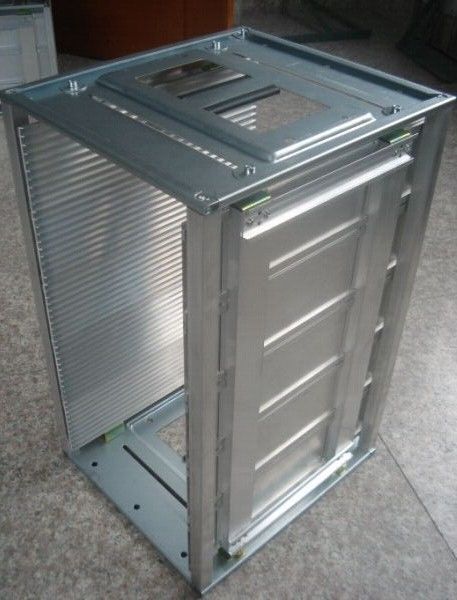

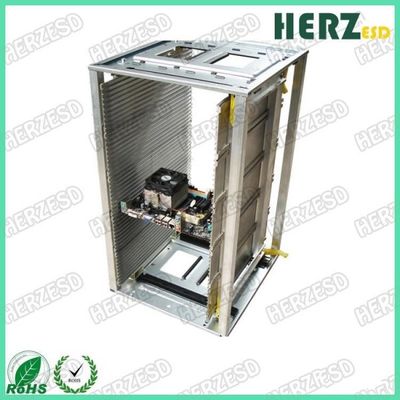

HZ-2614 Aluminum alloy metal ESD SMT PCB Magazine Rack 355*320*563

Detailed description

HZ-2614 Aluminum alloy ESD Magazine Rack 355*320*563

Material: Conductive PP /PPE, Zinc Coating Steel, Aluminium Alloy

Application:

- Store and logistic PCB, Electronic components

- ESD Protection on SMT, SMD , Semiconductor industrial

- Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .

Description

HZ-2614

Contour Size

(L×W×H)mm: 355*320*563

Storage slot

50pcs of Plates can be stored

Thespecification ofPCB plates

355*(80-250)mm

Guide slot of side plate

Depth 3mm, Width 8mm, Pitch 10mm

Material

Top and bottom Base are metal base

Fix method

Screw or gear track adjustable

Side plate

Five pieces assembled

Weight

6.8KG

Surface Resistance

103-109

Temperature





Anti Static Aluminum Alloy ESD SMT Magazine metal Rack Size 355 * 320 * 563 mm 0Anti Static Aluminum Alloy ESD SMT Magazine metal Rack Size 355 * 320 * 563 mm 1Anti Static Aluminum Alloy ESD SMT Magazine metal Rack Size 355 * 320 * 563 mm 2Anti Static Aluminum Alloy ESD SMT Magazine metal Rack Size 355 * 320 * 563 mm 3Anti Static Aluminum Alloy ESD SMT Magazine metal Rack Size 355 * 320 * 563 mm 4



ESD PCB magazine rack avaliable



  #1 #2 #3 Outer Dimension Card Guide   Slots Wight
        Ref. Position (kg)
Model No. Base AJ Method Temp L W H AJ C D E P A B
HZ-2601 PP Screw Adjust. 80°C 355 315 580 80-250 353 3.5 7 10 34 34 50 5
HZ-2602 PP Screw Adjust. 80°C 355 315 305 80-250 353 3.5 7 10 34 35.5 25 3.4
HZ-2603 Metal Screw/ 80°C 355 320 563 50-250 353 3 5.5 10 34 34 50 5
Gear Track
HZ-2604 PP Gear Track 80°C 355 320 563 50-250 353 3 5.5 10 34 34 50 4.5
HZ-2605 Metal Screw/ 80°C 355 320 563 50-250 353 3 5.5 10 34 34 50 6.5
Gear Track
HZ-2606 PP Gear Track 80°C 355 320 563 50-250 353 3 5.5 10 34 34 50 6
HZ-2607 Metal Screw/ 80°C 460 400 563 50-330 460 4 5.5 10 34 34 50 8
Gear Track
HZ-2608 Metal Screw/ 80°C 535 460 570 50-390 530 4 5.5 10 34 37 50 10.5
Gear Track
HZ-2609 Metal Screw/ 80°C 535 530 570 120-460 530 4 5.5 10 34 38 50 12
Gear Track
HZ-2610 Metal Screw Adjust. 80°C 630 530 570 50-460 630 3.5 6.5 10 34 37 50 13
HZ-2611 PP Chain Track 80°C 355 320 560 50-250 353 3 4.5 10 34 34 50 6
HZ-2612 Metal Screw/ 550°C 355 320 563 80-250 355 3 8 10 34 34 50 6.8
Gear Track
HZ-2613 Metal Screw/ 80°C 400 320 563 50-250 400 3 8 10 34 34 50 6
Gear Track




Anti Static Aluminum Alloy ESD SMT Magazine metal Rack Size 355 * 320 * 563 mm 5Anti Static Aluminum Alloy ESD SMT Magazine metal Rack Size 355 * 320 * 563 mm 6
