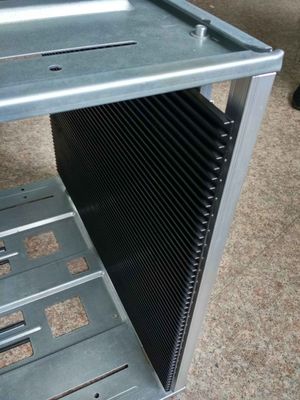

Large Size Adjustable Anti Static PCB Magazine Rack For PCB Loader Storage

Large Size Adjustable Anti Static PCB Magazine Rack For PCB Loader Storage

Product Details:

Place of Origin: China
Brand Name: Herzesd
Certification: CE, Rosh
Model Number: HZ-2610

Payment & Shipping Terms:

Minimum Order Quantity: 10 sets
Price: 10-99set, 85USD/set; 100-999set, 80USD/set; >=1000set, 75USD/set
Packaging Details: carton with pallet
Delivery Time: 3-5 days
Payment Terms: TT, , MoneyGram, Western Union
Supply Ability: 1000sets/week
Get Best Price Contact Now

Detail Information

Description: HZ-2610 Contour Size: (L×W×H)mm: 630×530×570
Storage Slot: 50pcs Of Plates Can Be Stored Size Of PCB Plates: 630×(50-460)mm
Guide Slot Of Side Plate: Depth 3.5mm, Width 6.5mm, Pitch 10mm Material: Top And Bottom Base Are Metal Base
Fix Method: Screw Adjustable Side Plate: Five Pieces Assembled
Weight: 12KG Temperature: 80 ℃ And 120℃ Are Available.
High Light:

630mm PCB Magazine Rack

,

PCB Loader Storage Trolley

,

Screw Adjustable PCB Magazine Rack

Product Description

Large/Big Size Adjustable Anti-static PCB Magazine Rack For PCB Loader Storage


Herzesd magazines rack meet standard dimensions most frequently used on automated lines. Strong injection molded
construction with metal reinforcement (top and bottom). Standardized plate that fits most popular brands on the market.



A PCB Magazine or PCB Rack is made of volume conductive polypropylene and metal, which is used to transport the PCB boards for automated assembly lines. The anti-static PCB magazines racks are an ideal aid in the production, storage and transportation of PCBs. The strong and robust sidewall and metal frame guarantee that these PCB magazines racks are durable, which last very long time.



Description: HZ-2610
Contour Size: (L×W×H)mm: 630×530×570
Storage slot: 50pcs of Plates can be stored
The specification of PCB plates: 630×(50-460)mm
Guide slot of side plate: Depth 3.5mm, Width 6.5mm, Pitch 10mm
Material: Top and bottom Base are metal base
Fix method: Screw adjustable
Side plate: Five pieces assembled
Weight: 12.0KG
Temperature: 80 ℃ and 120℃ are available



Other Size ESD PCB Magazine rack
  #1 #2 #3 Outer Dimension Card Guide   Slots Wight
        Ref. Position (kg)
Model No. Base AJ Method Temp L W H AJ C D E P A B
HZ-2601 PP Screw Adjust. 80°C 355 315 580 80-250 353 3.5 7 10 34 34 50 5
HZ-2602 PP Screw Adjust. 80°C 355 315 305 80-250 353 3.5 7 10 34 35.5 25 3.4
HZ-2603 Metal Screw/ 80°C 355 320 563 50-250 353 3 5.5 10 34 34 50 5
Gear Track
HZ-2604 PP Gear Track 80°C 355 320 563 50-250 353 3 5.5 10 34 34 50 4.5
HZ-2605 Metal Screw/ 80°C 355 320 563 50-250 353 3 5.5 10 34 34 50 6.5
Gear Track
HZ-2606 PP Gear Track 80°C 355 320 563 50-250 353 3 5.5 10 34 34 50 6
HZ-2607 Metal Screw/ 80°C 460 400 563 50-330 460 4 5.5 10 34 34 50 8
Gear Track
HZ-2608 Metal Screw/ 80°C 535 460 570 50-390 530 4 5.5 10 34 37 50 10.5
Gear Track
HZ-2609 Metal Screw/ 80°C 535 530 570 120-460 530 4 5.5 10 34 38 50 12
Gear Track
HZ-2610 Metal Screw Adjust. 80°C 630 530 570 50-460 630 3.5 6.5 10 34 37 50 13
HZ-2611 PP Chain Track 80°C 355 320 560 50-250 353 3 4.5 10 34 34 50 6
HZ-2612 Metal Screw/ 550°C 355 320 563 80-250 355 3 8 10 34 34 50 6.8
Gear Track
HZ-2613 Metal Screw/ 80°C 400 320 563 50-250 400 3 8 10 34 34 50 6
Gear Track



Large Size Adjustable Anti Static PCB Magazine Rack For PCB Loader Storage 0Large Size Adjustable Anti Static PCB Magazine Rack For PCB Loader Storage 1Large Size Adjustable Anti Static PCB Magazine Rack For PCB Loader Storage 2Large Size Adjustable Anti Static PCB Magazine Rack For PCB Loader Storage 3

Packaging & Shipping
Large Size Adjustable Anti Static PCB Magazine Rack For PCB Loader Storage 4
Company Information

The ESD products manufactured and supplied by Shanghai Herzesd Industrial are the result of meticulous planning and technological excellence. Our products showcase a fine amalgamation of excellence, quality, innovation, and technology. A continuous upgradation is always at place to enhance the security features applicable at various stages and premises on ESD accessories. These products are long lasting and equipped with precision technology. We have a group of hard working personnel who keep detecting the machines for better security.



Large Size Adjustable Anti Static PCB Magazine Rack For PCB Loader Storage 5

FAQ



Q:1, Why you need ESD protect for your production line?



♦ Electronic Components or assemblies at risk from electrostatic discharges (ESD) are among those sensitive elements which can be

destroyed or damaged if the permitted levels of current or impact energy are exceeded.



♦ As a rule, these are always semi-conducting components and most are also thick- and thin-film construction elements.This type of

construction element is mostly damaged through human mishandling. A human-being can charge several thousands of volts just by

walking. A discharge can be felt by humans from approximately 2000-3000 V, a current which is already well above the 'tolerance level'

of many ESD components.



♦ Before buying or implementing ESD safe products one needs implementing an ESD safe procedure according to theESD standards

IEC 61340 or ANSI S2020 which is the foundation of ESD preventive protective work and a greater guarantee of quality assurance.



♦ Besides our Anti-Static conductive ESD Workstations we offer an extensive range of
Antistatic ESD Chairs, Antistatic ESD Cleaning & Maintenance, Antistatic ESD Clothing, ESD Shoes ESD Footwear,Antistatic ESD

Flooring & Antistatic ESD Table Mats, ESD Safe Packaging, ESD Personal Grounding Materials, Anti-Static ESD Protective Storage & Warehousing Systems EPA, ESD Storage Boxes, ESD Test & Measuring Equipment, ESD Trainings, ESD Support & ESD Audits.



Q: 2, Why you choose HerzESD?



♦ HerzESD strives to serve our customers better by offering correct and clear explanatory answers. We try to do so, even when informing our customers better, means contradicting a more established but sometimes flawed opinions on the market. At HerzESD we pride ourselves on ensuring the only correct ESD solution.

♦ To continue this vision we need reliable ESD manufacturers and suppliers on which we can always count. HerzESD is a solid partner and together with our international partners,we stay strong and vigilant in regards to possible improvements or new solutions in tackling and controlling static electricity.



Large Size Adjustable Anti Static PCB Magazine Rack For PCB Loader Storage 6
