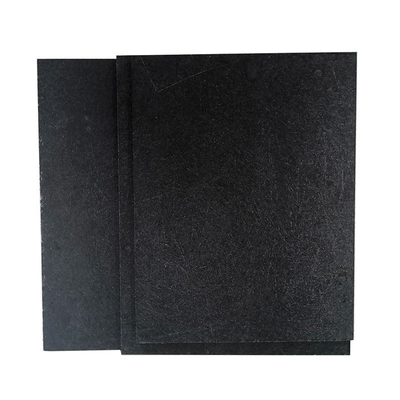

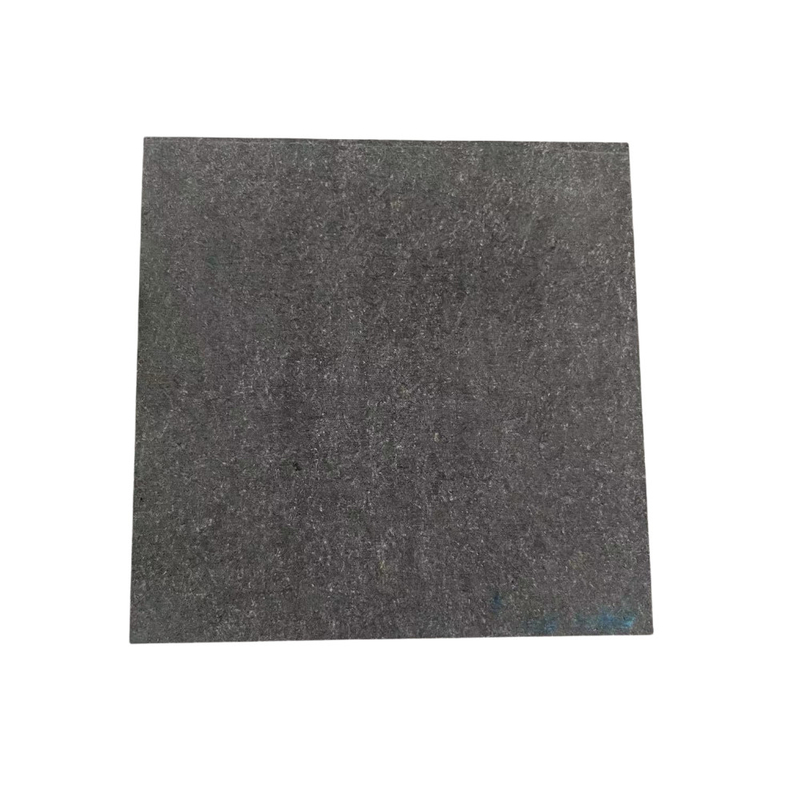

ESD Durostone Sheet Plate Solder Pallet Material Synthetic Stone Material
Product Details:
| Brand Name: | Herzesd |
| Certification: | Rohs |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 Kgs |
|---|---|
| Price: | USD+5-7+KGS |
| Packaging Details: | Pallet or Wooden Crate |
| Delivery Time: | 5-7 work days |
| Supply Ability: | 1000+KGS+5 days |
|
Detail Information |
|||
| Thickness: | 3mm.4mm.5mm.6mm.8mm.10mm.12mm | Size: | 1220*2440mm |
|---|---|---|---|
| Material: | Fiber Glass, Epoxy Resin | Product Name: | Synthetic Stone |
| Application: | Wave Soldering/reflow Soldering Insulation | ||
| High Light: | Synthetic Stone Material Durostone Plate,ESD Durostone Sheet Plate,Solder Pallet Material Durostone Plate |
||
Product Description
Description
Durostone is a fiber-reinforced plastic for mechanical and electrical applications. With good performance against electric arc and tracking, it is an ideal material for solder paste printing, SMT process, reflow soldering and wave soldering.
Characteristics
-Good Anti-static property
-High strength and good machinability
-High temperature resistance
-Tight machining tolerance
-Chemical resistant
-Long life cycle
| No. | Test Performance/Items | Unit | Standards | Test Results | Test Method |
| 1 | Rockwell hardness(HRM) | 一 | 一 | M114 | GB/T 3398.2-2008 |
| 2 | Glass Transition Temperature(DSC) | ℃ | 一 | 136 | GB/T 22567-2008 |
| 3 | Density | g/cm³ | 一 | 2.01 | GB/T 1303.2-2009 |
| 4 | Absorbency | mg | 一 | 24.2 | |
| 5 | Vertical laminar bending strength(23 ℃±2℃) |
Mpa | 一 | 361 | |
| 6 | Vertical laminar bending strength(155℃±2℃) | Mpa | 一 | 158 | |
| 7 | Vertical laminar bending strength(180℃±2℃) | Mpa | 一 | 84.4 | |
| 8 | Vertical laminar bending elastic modulus(23℃±2℃) | Mpa | 一 | 2.15*10^4 | |
| 9 | Vertical laminar bending elastic modulus(155℃±2℃) | Mpa | 一 | 1.26*10^4 | |
| 10 | Vertical laminar bending elastic modulus(180℃±2℃) | Mpa | 一 | 9.95 x 10^3 | |
| 11 | Operation temperature(260℃±2℃ /3000min after appearance) |
一 | 一 | No delamination or cracking observed in the sample |
Testing methods provided by the client |
| 12 | Instantaneous temperature resistance(350℃±10℃/10s after appearance) | 一 | 一 | No cracking observed in the sample,No obvious changes in appearance | |
| 13 | Surface Resistivity | Ω | 一 | 1.5 x 10^7 | GB/T 31838.3-2019 |
| 14 | Linear coefficient of thermal expansion(20℃-60℃) |
10^-6/K | 一 | 12.5 | GB/T 1036-2008 |
| Remark: Item No.4 "Absorbency" the size of test sample is(60.01-61.15)mm*(60.02-60.21)mm x 4.00mm. | |||||
