Smt Antistatic Magazine Rack For Loader Unloader Smt Pcb Esd Magazine Rack
Product Details:
| Place of Origin: | CN |
| Brand Name: | Herzesd |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | USD 35-50/ set |
|
Detail Information |
|||
| Features: | Easy To Assemble, Lightweight, Durable | Adjust Type: | Screw/ Gear Track |
|---|---|---|---|
| Warranty: | 1 Year | Compatibility: | ESD-Safe Workstations |
| Package Includes: | 1 X Magazine Rack | High Temperature Resistance: | 80℃,120℃ And 200℃ Above Are Available |
| Assembly Required: | Yes | Usage: | Electrostatic Discharge |
| High Light: | Esd Antistatic Magazine Rack,Loader Unloader Smt Antistatic Magazine Rack,Smt Pcb Antistatic Magazine Rack |
||
Product Description

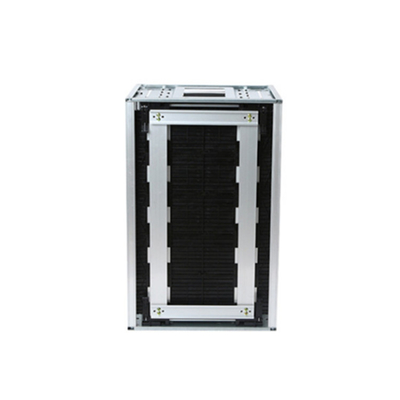

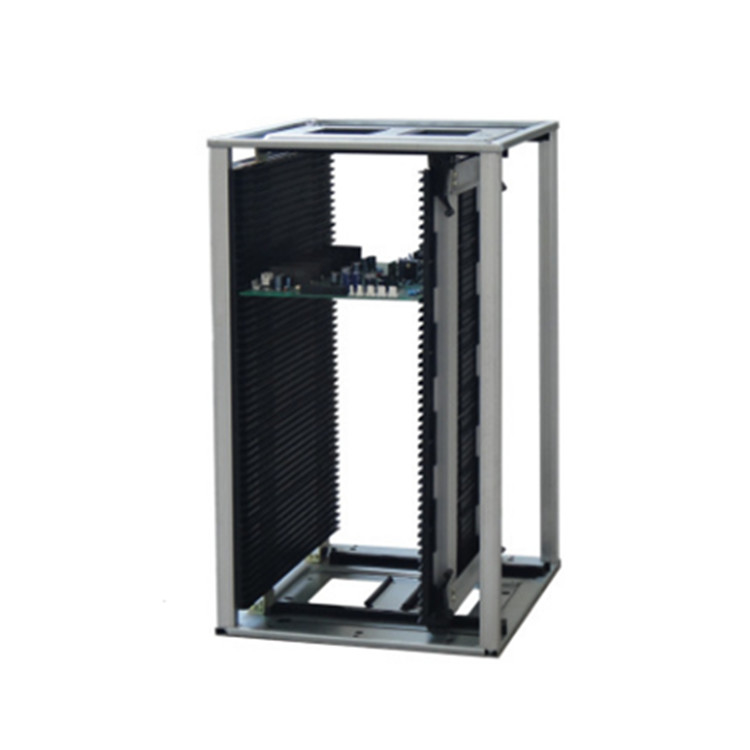

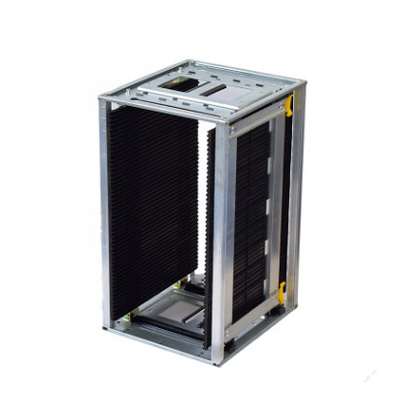

ESD SMT PCB Magazine Racks:
A PCB Maqazine or PCB Rack is made of volume conductive polypropyleneand metalwhich is used to transport the PCB boards for automated assembly lines. The anti-staticPCB magazines racks are an ideal aid in the production, storage and transportation of PCBs.The strong and robust sidewall ancmetal frame guarantee that these PCB magazines racksare durable, whichlast very long time.
Applications:
Herzesd magazine racks meet standard dimensions that are most frequently used on automated lines. Its strong injection-molded construction includes metal reinforcement at the top and bottom. The standardized plate design fits most top brands on the market.
Technical Parameters:
| Parameter | Value |
|---|---|
| Name | ESD Magazine Rack |
| Size | 460mm*400mm*563mm |
| Number of Shelves | 1 |
| Compatibility | ESD-Safe Workstations |
| Assembly Required | Yes |
| Capacity | 50pcs PCB Could Be Storaged |
| Options | Please Contact Us For More Sizes |
| Usage | Electrostatic Discharge |
| High Temperature Resistance | 80℃,120℃ And 200℃ Above Are Available |
| Adjust Type | Screw/ Gear Track |
Customization:
| Model | Outer size(mm) | PCB plate size(mm) | Base material | Adjust type | Temp. | Slots | Weight (KG) |
| HZ-2601 | 355*315*580 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 50 | 5 |
| HZ-2602 | 355*315*305 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 25 | 3.4 |
| HZ-2603 | 355*320*563 | 355* (50-250) | Metal | Screw / gear track | 80℃/120℃/200℃ | 50 | 5 |
| HZ-2604 | 355*320*563 | 355* (50-250) | Plastic | Gear track | 80℃/120℃ | 50 | 4.5 |
| HZ-2605 | 355*320*563 | 355* (50-250) | Metal | Screw / gear track | 80℃/120℃ | 50 | 6.5 |
| HZ-2606 | 355*320*563 | 355* (50-250) | Metal | Gear track | 80℃/120℃ | 50 | 6 |
| HZ-2607 | 460*400*563 | 460*(50-330) | Metal | Screw / gear track | 80℃/120℃/200℃ | 50 | 8 |
| HZ-2608 | 535*460*570 | 535*(50-390) | Metal | Screw / gear track | 80℃/120℃ | 50 | 10.5 |
| HZ-2609 | 535*530*570 | 535*(120-460) | Metal | Screw / gear track | 80℃/120℃ | 50 | 12 |
| HZ-2610 | 630*530*570 | 630*(50-460) | Metal | Screw adjust. | 80℃ | 50 | 13 |
| HZ-2611 | 355*320*560 | 355* (50-250) | Plastic | Chain adjust. | 80℃ | 50 | 6 |
| HZ-2612 | 355*320*560 | 355*(80-250) | Metal | Screw / gear track | 550℃ | 50 | 6.8 |
| HZ-2613 | 400*320*563 | 400*(50-250) | Metal | Screw / gear track | 80℃ | 50 | 6 |
Packing and Shipping:
Regular Carton Package
