ESD PCB Magazine Rack Antistatic SMT PCB Storage Cart For Safe PCB Handling 355*315*580mm
Product Details:
| Place of Origin: | CN |
| Brand Name: | HERZESD |
| Model Number: | HZ-2601 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | USD 20-55/ set |
| Packaging Details: | Samples with Carton box/ Bulk order with Pallet |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, PayPal |
| Supply Ability: | 1000 units per week |
|
Detail Information |
|||
| Contour Size: | (L×W×H)mm: 355*315*580 | Storage Slot: | 51pcs Of Plates Can Be Stored |
|---|---|---|---|
| The Specification Of PCB Plates: | 355*(80－250)mm | Guide Slot Of Side Plate: | Depth 3.5mm, Width 7mm, Pitch 10mm |
| Material: | Top And Bottom Base Are Plastic Base | Fix Method: | Screw Adjustable |
| Weight: | 5.0KG | Other: | 355*315*305mm Is Available(HZ-2602) |
| Highlight: | Safe PCB Handling Magazine Rack,Antistatic PCB Magazine Rack,ESD PCB Magazine Rack |
||
Product Description

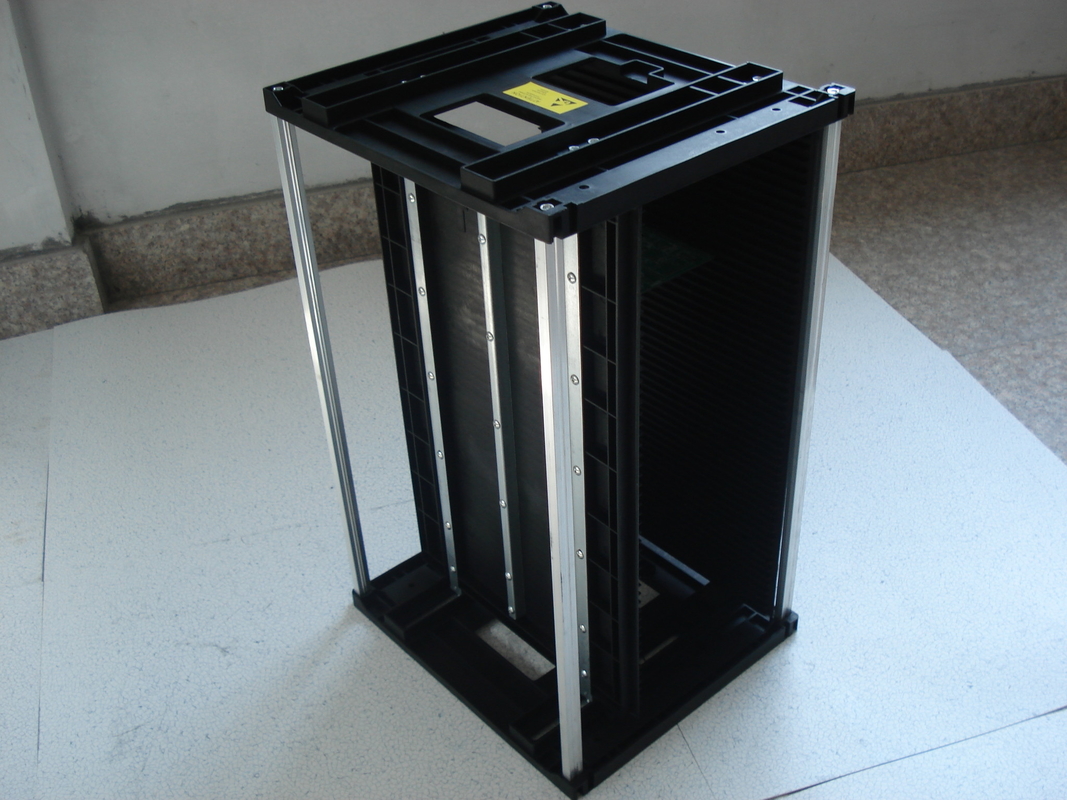

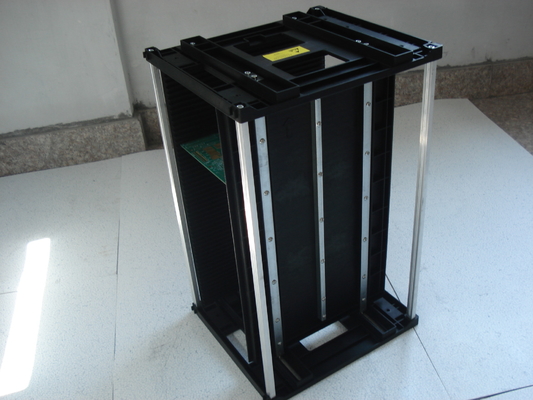

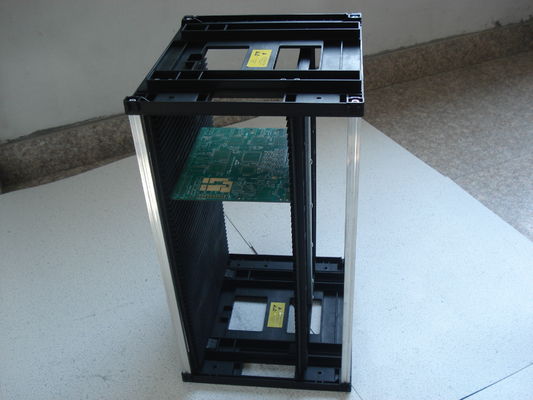

ESD PCB Magazine Rack
355*315*580mm ESD PCB Magazine Rack Antistatic SMT PCB Storage Cart for Safe PCB Handling
A PCB Magazine Rack is constructed from volume-conductive polypropylene and metal, designed specifically for transporting PCB boards in automated assembly lines.
These antistatic PCB magazine racks are ideal for the production, storage, and transportation of PCBs.
With a robust sidewall and metal frame, they offer exceptional durability and long-lasting performance.
Specifications:
Surface Resistance: 10⁵ ~ 10⁹ Ω
Maximum PCB Capacity: Holds up to 51 PCBs
Side Guide Slot Dimensions: Depth 3.5 mm, Width 7.0 mm, Pitch 10 mm
Adjustment Method: Screw Adjustable
Product Description
| Description | HZ-2601 |
|
Contour Size
|
(L×W×H)mm: 355×315×580
|
|
Storage slot
|
51pcs of Plates can be stored
|
|
The specification of PCB plates
|
355×(80－250)mm
|
|
Guide slot of side plate
|
Depth 3.5mm, Width 7mm, Pitch 10mm
|
|
Material
|
Top and bottom Base are plastic base
|
|
Fix method
|

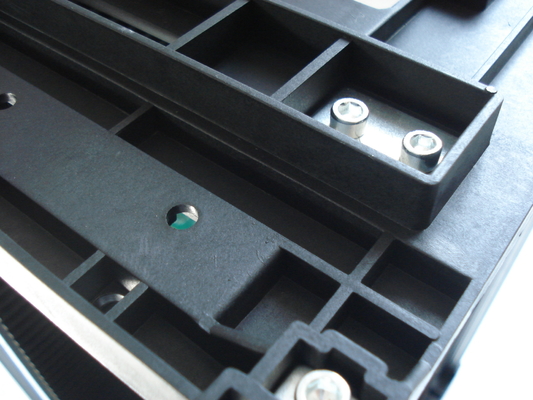

Screw adjustable
|
|
Weight
|
5.0KG
|
|
355x315x305mm size magazine rack is available (HZ-2602)
|
|
Customization
Different size available, please refer below
| Model | Outer size(mm) | PCB plate size(mm) | Base material | Adjust type | Temp. | Slots | Weight (KG) |
| HZ-2601 | 355*315*580 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 50 | 5 |

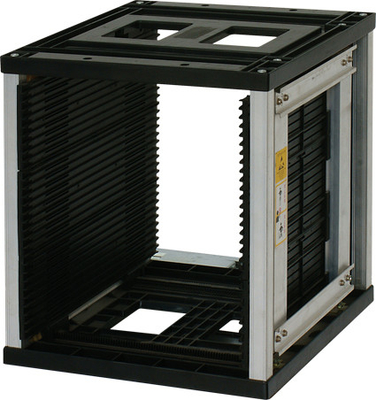

| HZ-2602 | 355*315*305 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 25 | 3.4 |
| HZ-2603 | 355*320*563 | 355* (50-250) | Metal | Screw/gear track | 80℃/120℃/200℃ | 50 | 5 |
| HZ-2604 | 355*320*563 | 355* (50-250) | Plastic | Gear track | 80℃/120℃ | 50 | 4.5 |
| HZ-2605 | 355*320*563 | 355* (50-250) | Metal | Screw/gear track | 80℃/120℃ | 50 | 6.5 |
| HZ-2606 | 355*320*563 | 355* (50-250) | Metal | Gear track | 80℃/120℃ | 50 | 6 |
| HZ-2607 | 460*400*563 | 460*(50-330) | Metal | Screw/gear track | 80℃/120℃/200℃ | 50 | 8 |
| HZ-2608 | 535*460*570 | 535*(50-390) | Metal | Screw/gear track | 80℃/120℃ | 50 | 10.5 |
| HZ-2609 | 535*530*570 | 535*(120-460) | Metal | Screw/gear track | 80℃/120℃ | 50 | 12 |
| HZ-2610 | 630*530*570 | 630*(50-460) | Metal | Screw adjust. | 80℃ | 50 | 13 |
| HZ-2611 | 355*320*560 | 355* (50-250) | Plastic | Chain adjust. | 80℃ | 50 | 6 |
| HZ-2612 | 355*320*560 | 355*(80-250) | Metal | Screw/gear track | 550℃ | 50 | 6.8 |
| HZ-2613 | 400*320*563 | 400*(50-250) | Metal | Screw/gear track | 80℃ | 50 | 6 |
Company Profile
Shanghai Herzesd Industry Co., Ltd
Specialized range of ESD products including anti-static equipment, ESD Work Station Accessories, Safe Packaging Materials, ESD Control Materials, etc.
Packaging & Shipping
ESD Magazine Rack will be packaged in a cardboard box with foam cushioning to ensure safety during transit.
The box will be marked with the name of the product, shipping address, and other relevant shipping information.
The package will be shipped to the customer’s address via a reliable courier service.
FAQ
Q:1. Why do you need ESD protection for your production line?
♦ Electronic Components or assemblies at risk from electrostatic discharges (ESD) are among those sensitive elements that can be destroyed or damaged if the permitted levels of current or impact energy are exceeded.
♦ As a rule, these are always semi-conducting components and most are also thick- and thin-film construction elements. This type of construction element is mostly damaged through human mishandling. A human being can charge several thousands of volts just by walking. A discharge can be felt by humans from approximately 2000-3000 V, a current which is already well above the 'tolerance level' of many ESD components.
♦ Before buying or implementing ESD-safe products one needs to implement an ESD-safe procedure according to the ESD standards IEC 61340 or ANSI S2020 which is the foundation of ESD preventive protective work and a greater guarantee of quality assurance.
♦ Besides our Anti-Static conductive ESD Workstations we offer an extensive range of
Antistatic ESD Chairs, Antistatic ESD Cleaning & Maintenance, Antistatic ESD Clothing, ESD Shoes ESD Footwear, Antistatic ESD Flooring & Antistatic ESD Table Mats, ESD Safe Packaging, ESD Personal Grounding Materials, Anti-Static ESD Protective Storage & Warehousing Systems EPA, ESD Storage Boxes, ESD Test & Measuring Equipment, ESD Training, ESD Support & ESD Audits.
Q: 2. Why did you choose HerzESD?
♦ HerzESD strives to serve our customers better by offering correct and clear explanatory answers. We try to do so, even when informing our customers better, which means contradicting a more established but sometimes flawed opinion on the market. At HerzESD we pride ourselves on ensuring the only correct ESD solution.
♦ To continue this vision we need reliable ESD manufacturers and suppliers on which we can always count. HerzESD is a solid partner and together with our international partners, we stay strong and vigilant in regards to possible improvements or new solutions in tackling and controlling static electricity.
