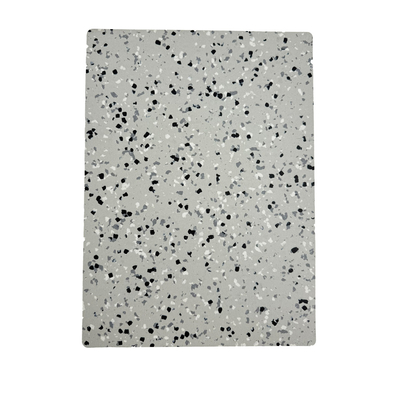

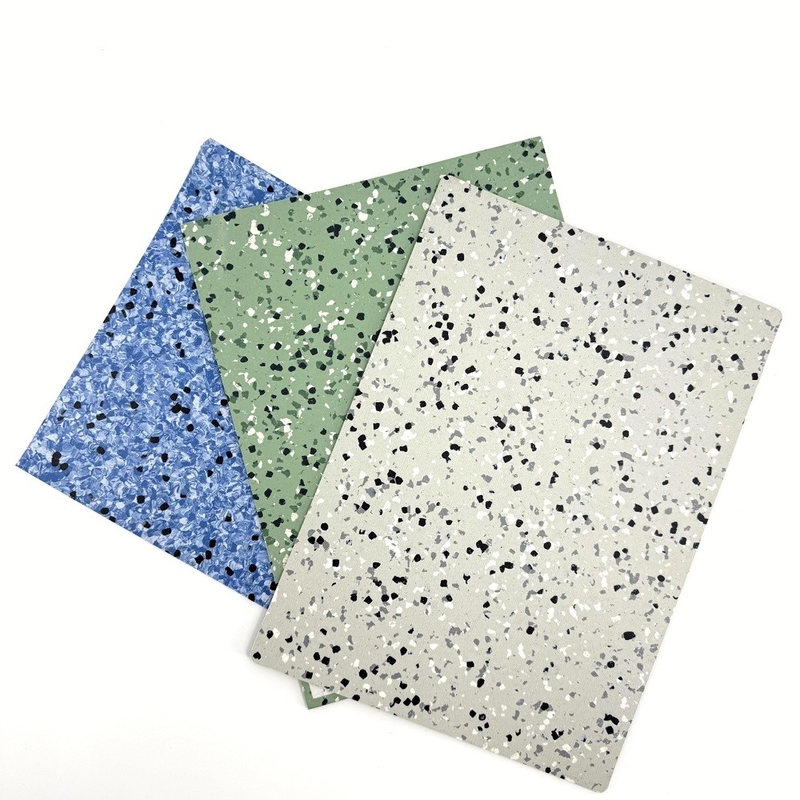

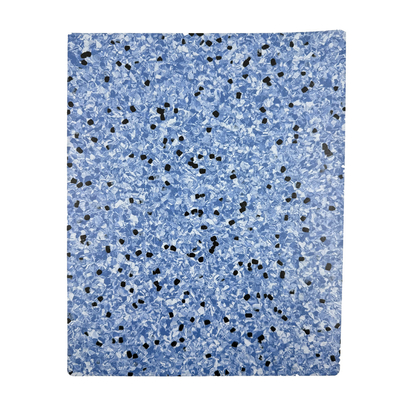

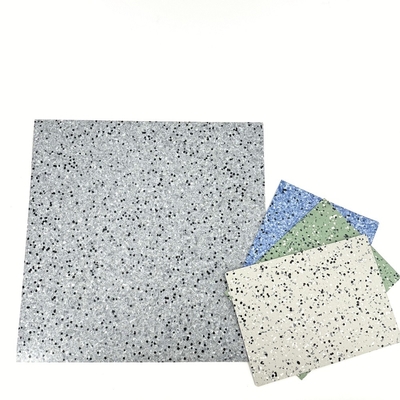

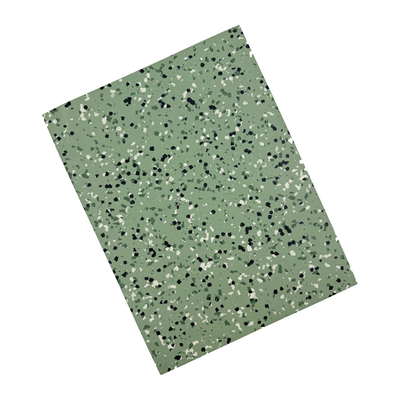

ESD Vinyl Floor Sheets Antistatic PVC Flooring Sheets
Product Details:
| Place of Origin: | CN |
| Brand Name: | Herzesd |
| Model Number: | ESD Vinyl Flooring Sheets/ ESD Vinyl Flooring Tile |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 - 99 Pieces |
|---|---|
| Price: | $5-$10 |
| Packaging Details: | Package or pallet |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 Piece/Pieces per Week |
|
Detail Information |
|||
| Product Name: | ESD Vinyl Flooring Sheets/ ESD Vinyl Flooring Tile | Material: | PVC |
|---|---|---|---|
| Size: | 600x600x2.0mm/2.5mm/3.0mm Or 2.0m X 20m X 2.0mm, Customized | Thickness: | 2mm/2.5mm/3mm |
| Usage: | Indoor Floor | Application: | Industry/ Office/ Hospital/Cleanroom |

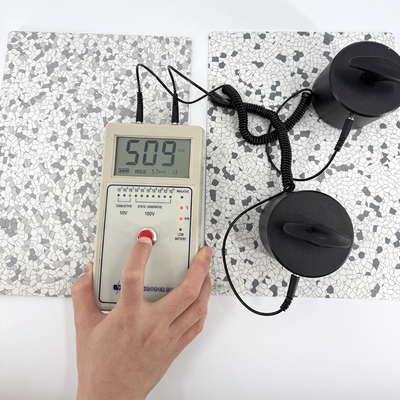

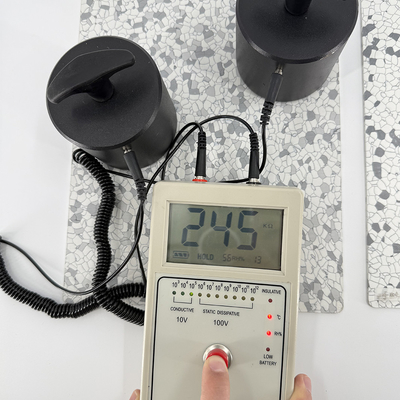

| Feature: | Conductive, Electric Disspasive | Electrical Resistance: | 1.0x10E04-1.0x10E06 Ohm/1.0x10E06-1.0x10E09 Ohm |
| Color: | Customized | Package: | Roll/ Pieces |
| Highlight: | Antistatic PVC Flooring Sheets,ESD Vinyl Floor Sheets,PVC Flooring Sheets |
||
Product Description
Product Description
Conductive Vinyl Tile Antistatic PVC Flooring ESD Floor Tiles ESD Vinyl Flooring Sheets
ESD vinyl flooring is widely used in clean rooms, manufacturing & assembly workshops of electronic products, hospitals, data centers & computer rooms, and other areas that require an anti-static environment. There are two kinds of ESD vinyl flooring, ESD tile and ESD sheet. Both tile and sheet are homogeneous structures, and electronic resistance can meet both conductive(10^4-10^6Ω) and static-dissipative(10^6-10^9Ω).
The difference in the production process of tile and sheet determines the difference in the implementation of conductivity.
Tiles utilize a conductive network electrostatically formed by the interface of plastic particles. It ensures permanent conductive properties.
The ESD sheet inserts carbon-encapsulated granules throughout the whole thickness, and a conductive backing is attached, providing optimum and consistent conductive properties.
How Does a Static-Control Floor Provide a Path to Ground?
In the manufacturing process, ESD floor tiles are loaded with conductive elements, such as carbon, graphite or particles coated with metals, that provide electrical conductivity. When the floor becomes electrically charged, these conductive elements act as an electrical chain, conducting electricity from the surface of the floor through its entire thickness. Static-control flooring is installed over an electrically conductive underlayment, such as conductive copper foils or carbon-loaded adhesive.
The underlayment forms a conductive ground plane that unifies all the contiguously-installed tiles in the room. Copper grounding strips, attached to the underlayment, are connected to either an electrical outlet or an earth ground such as a steel I-beam or a grounding rod. This electrical connection allows static to complete its circuit and flow safely to ground. The static generated when people walk on the ESD floor flows at a controlled rate through the conductive elements in the floor, across the underlayment, to the copper strips, to ground. Instead of remaining on the floor’s surface or moving through humans to whatever they touch, static is drawn downward, toward ground, where it can no longer wreak havoc.
Packaging & Shipping
Company Information
The ESD products manufactured and supplied by Shanghai Herzesd Industrial are the result of meticulous planning and technological excellence. Our products showcase a fine amalgamation of excellence, quality, innovation, and technology. A continuous upgradation is always at place to enhance the security features applicable at various stages and premises on ESD accessories. These products are long lasting and equipped with precision technology. We have a group of hard working personnel who keep detecting the machines for better security.
FAQ
1. WHY IS ESD – ELECTROSTATIC DISCHARGE – A PROBLEM?
2. WHY IS STATIC-CONTROL FLOORING NEEDED?
When we walk on certain floors, the friction between the soles of our shoes and the floor generates a static charge.* This static charge stays in place, on the surface of our body, until we touch something, then it jumps or discharges to that person or object.
This release of electricity is called an electrostatic discharge, or ESD. When static discharges to a static-sensitive electronic component, the sudden rush of electrical current can damage or destroy its internal circuitry.
In most workplace environments, the static generated when people walk is the biggest contributor to random ESD events (or problems caused by electrostatic discharge). For this reason, a static-protective floor—or an ESD floor/footwear combination—is the cornerstone of any effective static-control program.
When we walk on certain floors, the friction between the soles of our shoes and the floor generates a static charge.* This static charge stays in place, on the surface of our body, until we touch something, then it jumps or discharges to that person or object.
This release of electricity is called an electrostatic discharge, or ESD. When static discharges to a static-sensitive electronic component, the sudden rush of electrical current can damage or destroy its internal circuitry.
In most workplace environments, the static generated when people walk is the biggest contributor to random ESD events (or problems caused by electrostatic discharge). For this reason, a static-protective floor—or an ESD floor/footwear combination—is the cornerstone of any effective static-control program.
