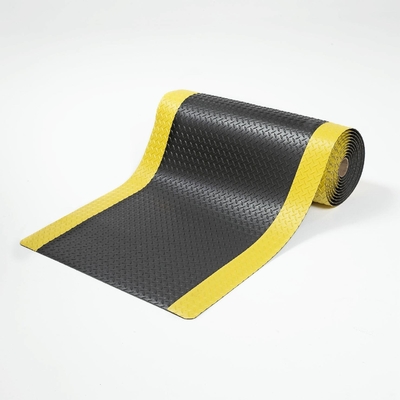

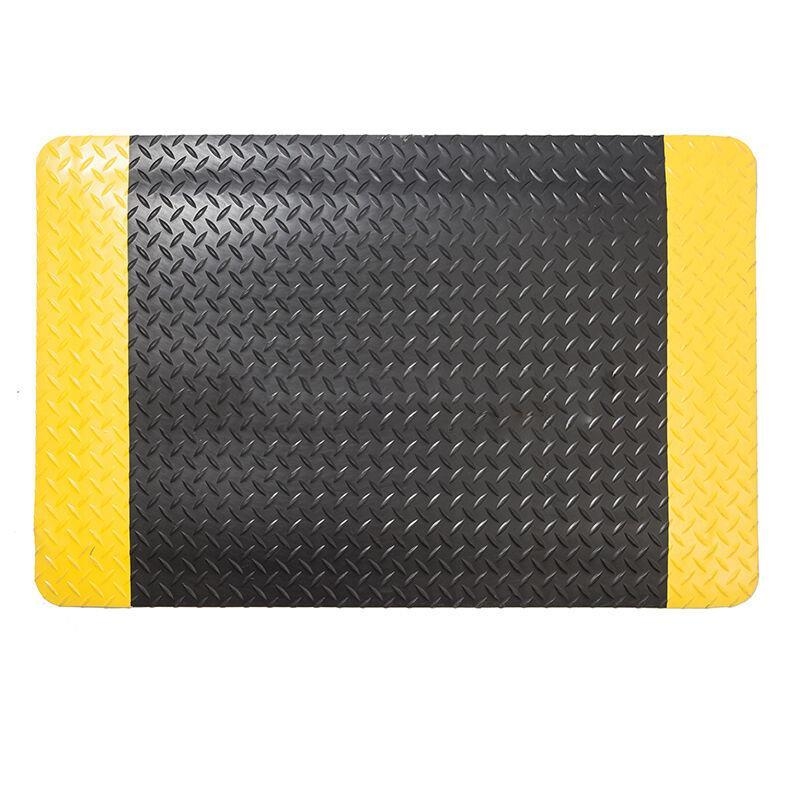

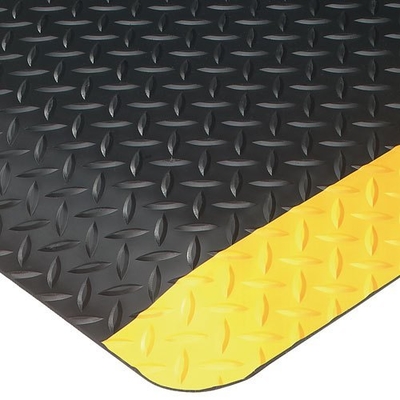

Custom ESD Anti-Fatigue Floor Mat PVC EVA Foam Conductive Rubber
Product Details:
| Place of Origin: | China |
| Brand Name: | Herzesd |
| Model Number: | HZ-418 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | $8-18 |
|
Detail Information |
|||
| Material: | PVC+EVA/EPDM Foam+Rubber | Size: | Customized |
|---|---|---|---|
| Thickness: | 10mm-30mm | Volume Resistance: | 10e6-10e9 Ohm |
| Max Length: | 20m | Max Width: | 0.4-1.2m |
| Surface Resistance: | 108-109 Ohms | Weight Capacity: | <100KG |
| Layer Structure: | 3 Layers | Surface Material: | High Strength PVC |
| Middle Layer: | EPDM Foam | Bottom Layer: | Conductive Rubber |
| Standard Sizes: | 610x910x18mm, 610x450x18mm | Thickness Range: | 9-40mm |
| Color Options: | Black, Black & Yellow, Blue, Gray, Red | ||
| Highlight: | ESD anti-fatigue floor mat,conductive rubber ESD mat,PVC EVA foam mat |
||
Product Description
| Attribute | Value |
|---|---|
| Processing Service | Customized Color |
| Material | PVC+EVA/EPDM foam+Rubber |
| Size | Customized |
| Thickness | 10mm-30mm |
| Color | Black & yellow; All black; Blue; Gray; Red |
| Volume Resistance | 106-109 ohm |
| Recommended Work Condition | Weight <100KG |
| Usage | Electronic Workshop |

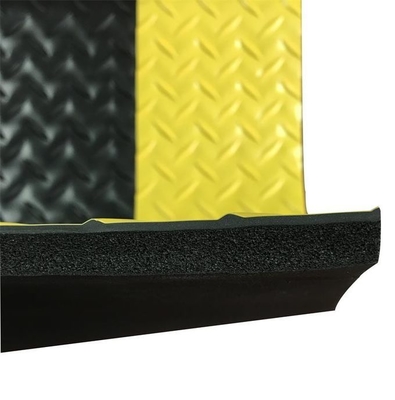

Our anti-fatigue ESD foam mat features a 3-layer structure for optimal performance in cleanroom and electronic workshop environments:
- Surface Layer: High strength PVC material
- Middle Layer: EPDM foam for cushioning and comfort
- Bottom Layer: Conductive rubber for static dissipation
Available Sizes: 610x910x18mm, 610x450x18mm (custom sizes available)
Maximum Dimensions: Length up to 20m, Width 0.4-1.2m
Thickness Options: 9-40mm
Color Options: Black or Black & Yellow
Surface Resistance: 108-109 ohms (PVC Surface)
Electronic components or assemblies at risk from electrostatic discharges (ESD) are sensitive elements that can be destroyed or damaged if permitted levels of current or impact energy are exceeded. These typically include semi-conducting components and thick- and thin-film construction elements, which are most often damaged through human mishandling.
A human being can charge several thousand volts just by walking. Discharges become noticeable at approximately 2000-3000V - already well above the tolerance level of many ESD components.
Before implementing ESD-safe products, we recommend establishing an ESD-safe procedure according to ESD standards IEC 61340 or ANSI S2020. These standards form the foundation of ESD preventive protective work and provide greater quality assurance.
HerzESD is committed to providing accurate information and clear explanations to our customers. We pride ourselves on offering correct ESD solutions, even when it means challenging established but sometimes flawed market opinions. Through partnerships with reliable manufacturers, we maintain vigilance in developing new solutions for static electricity control.
