ESD Anti-Fatigue Mat PVC EPDM Rubber 10-30mm Customizable
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Herzesd |
| Model Number: | HZ-418 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | $9.90-18 |
|
Detail Information |
|||
| Material: | PVC+EVA/EPDM Foam+Rubber | Thickness: | 10mm-30mm |
|---|---|---|---|
| Volume Resistance: | 10e6-10e9 Ohm | Work Condition: | Weigh<100KG |
| Surface Resistance: | 1x10E6-10E9 Ohms | Standard Size: | 610x910x18, 610x450x18 |
| Layer Structure: | 3 Layers: PVC + Carbamic Resin + Conductive Rubber | Ground Resistance: | 109-1010ohm |
| Anti-fatigue Effect: | Better | Model HZ-950 Size: | 610x460x15 |
| Model HZ-930 Size: | 610x910x12.5, 610x450x12.5 | Model HZ-418S Size: | 610x910x17 |
| Model HZ-418E Size: | 610x910x18, 610x450x18 | Model HZ-418B Size: | 610x910x20 |
| Surface Pattern: | Diamond Plate | ||
| Highlight: | ESD anti-fatigue mat PVC,EPDM rubber ESD mat,customizable ESD rubber mat |
||
Product Description
| Attribute | Value |
|---|---|
| Processing Service | Customized Color |
| Product Name | Anti Fatigue Mat |
| Material | PVC+EVA/EPDM Foam+Rubber |
| Size | Customized Accepted |
| Thickness | 10mm-30mm |
| Color | Black & yellow; All black |
| Volume Resistance | 10e6-10e9 ohm |
| Recommended Work Condition | Weight <100KG |
| Usage | Electronic Workshop |
| Logo | Customized Logo Available |
| Sample | Available (600*900mm) |

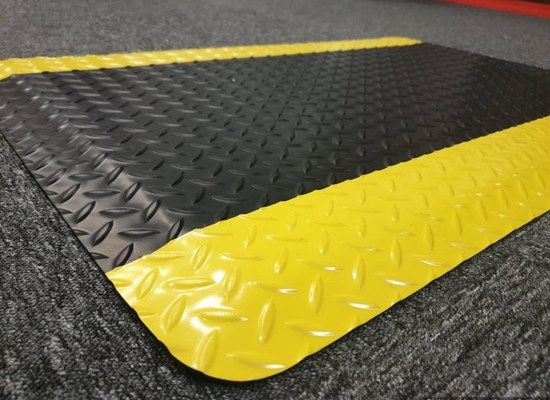

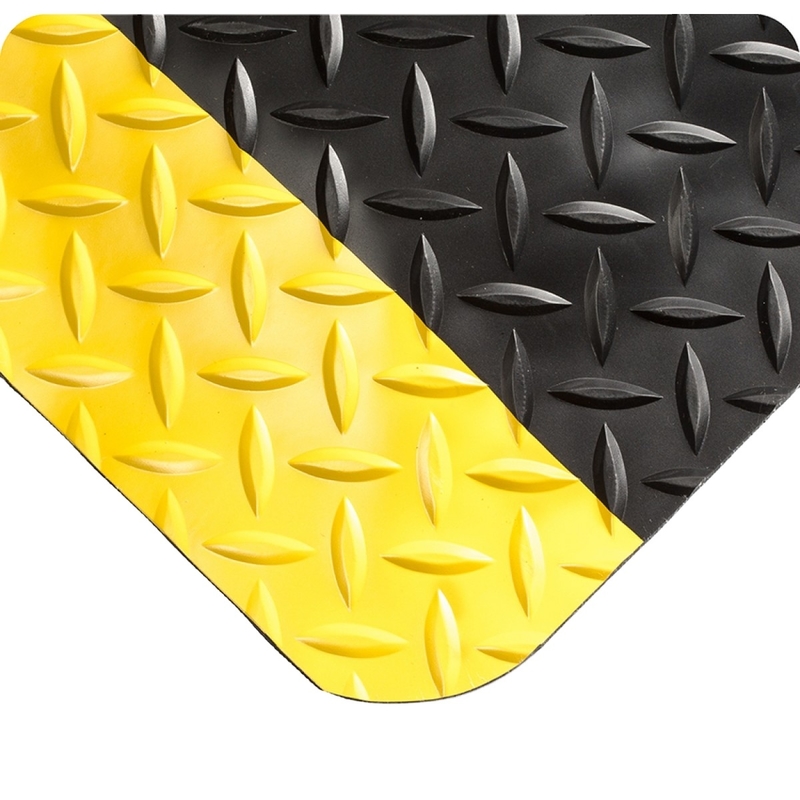

Our bestselling ESD Anti Fatigue Mat features a 14mm thick ergonomic platform with a durable top surface bonded to a resilient microcellular vinyl base for superior comfort and durability. The diamond plate pattern enhances traction, while the slip-resistant backing keeps the mat in place. Beveled edges on all sides reduce trip hazards, making this mat ideal for fatigue relief in both static and dynamic work environments.

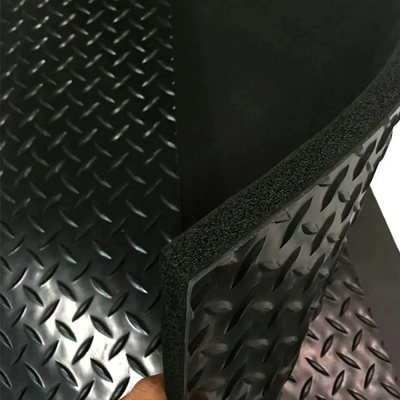

3-layer structure: PVC surface, carbamic resin middle layer, and conductive rubber bottom layer.
- Standard sizes: 610x910x18mm, 610x450x18mm (custom sizes available)

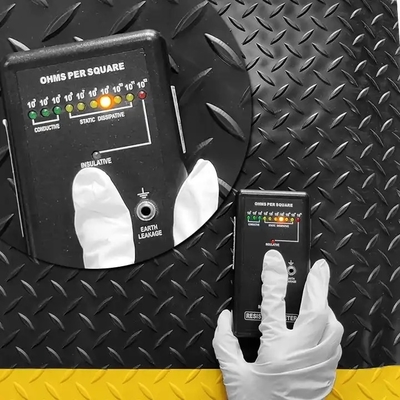

- Surface resistance: RTT 1x10E6-10E9 ohms

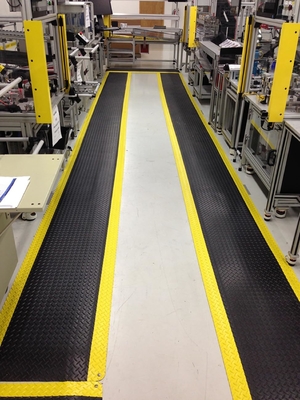

- Ideal for electronic components manufacturers and static sensitive areas
- Advanced production technology for permanent static prevention

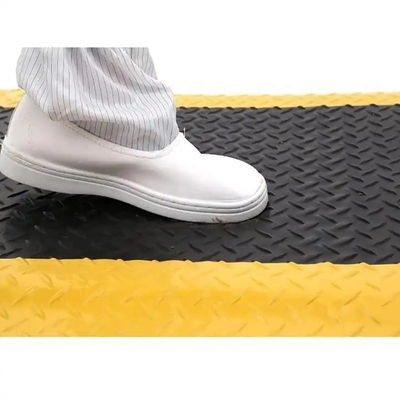

- Composite layer structure effectively cushions foot pressure to alleviate fatigue
- Surface with yellow warning side naturally forms anti-static protected areas
- Easy to clean and move without disrupting work environment
- Non-slip surface resistant to acids and alkalis for safe use
| Model | Size(mm) | Material | Surface Resistance | Ground Resistance | Anti-fatigue Effect | Note |
|---|---|---|---|---|---|---|
| HZ-950 | 610x460x15 | Good Natural Rubber | <107ohm | <107ohm | Best | |
| HZ-930 | 610x910x12.5 610x450x12.5 |
Rubber Material | 108-109ohm | 108-109ohm | Good | Low cost design |
| HZ-418S | 610x910x17 | 2 layers: PVC + Carbamic resin | 108-109ohm | 109-1010ohm | Better | |
| HZ-418E | 610x910x18 610x450x18 |
3 layers: PVC + Carbamic resin + Conductive rubber | 108-109ohm | 109-1010ohm | Better | |
| HZ-418B | 610x910x20 | 3 layers: PVC + EPDM + Conductive rubber | 108-109ohm | 109-1010ohm | Better | Low cost design |
Specialized range of ESD products including anti-static equipment, ESD Work Station Accessories, Safe Packaging Materials, ESD Control Materials, and more.
Established in 2018, we are a reputed manufacturer, supplier, exporter and trader of ESD Products serving the electronics manufacturing industry with excellent product quality, competitive pricing, and professional services.
- ESD Equipments and Anti-static Equipments
- ESD Work Station Accessories
- ESD Shielding bags and packaging
- ESD Magazine Racks and PCB trolleys
- ESD Workstations and Garments
- ESD Fabrics and Control Materials
- Static Control Equipment and solutions
Electronic components or assemblies at risk from electrostatic discharges (ESD) are sensitive elements which can be destroyed or damaged if the permitted levels of current or impact energy are exceeded. These include semi-conducting components and thick- and thin-film construction elements.
Human handling is a primary risk factor - a person can charge several thousand volts just by walking. A discharge felt by humans (2000-3000V) is already above the tolerance level of many ESD components.
Before implementing ESD safe products, you should establish an ESD safe procedure according to ESD standards IEC 61340 or ANSI S2020 as the foundation of ESD preventive work and quality assurance.
HerzESD is committed to providing customers with accurate information and proper ESD solutions, even when it means correcting common misconceptions in the market. We pride ourselves on delivering only correct ESD solutions through reliable manufacturing and supply partnerships.
As a solid partner in ESD control, we continuously work with international partners to identify improvements and new solutions for static electricity control in industrial environments.
