Customizable ESD Anti-Fatigue Mat PVC EVA Rubber 10-30mm
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Herzesd |
| Model Number: | HZ-418 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | $13-18 |
|
Detail Information |
|||
| Material: | PVC+EVA/EPDM Foam+Rubber | Thickness: | 10mm-30mm |
|---|---|---|---|
| Volume Resistance: | 10e6-10e9 Ohm | Max Weight: | <100KG |
| Surface Resistance: | 1x10E6-10E9 Ohms | Ground Resistance: | <107ohm (HZ-950), 108-109ohm (HZ-930), 109-1010ohm (HZ-418S/E/B) |
| Structure Layers: | 3 Layers (PVC + Carbamic Resin + Conductive Rubber) | Model HZ-950 Size: | 610x460x15mm |
| Model HZ-930 Size: | 610x910x12.5mm, 610x450x12.5mm | Model HZ-418S Size: | 610x910x17mm |
| Model HZ-418E Size: | 610x910x18mm, 610x450x18mm | Model HZ-418B Size: | 610x910x20mm |
| Anti-fatigue Effect: | Best (HZ-950), Good (HZ-930), Better (HZ-418S/E/B) | Surface Texture: | Textured For Traction |
| Cushioning Material: | Yes | ||
| Highlight: | customizable ESD anti-fatigue mat,PVC EVA rubber mat,ESD rubber mat with warranty |
||
Product Description

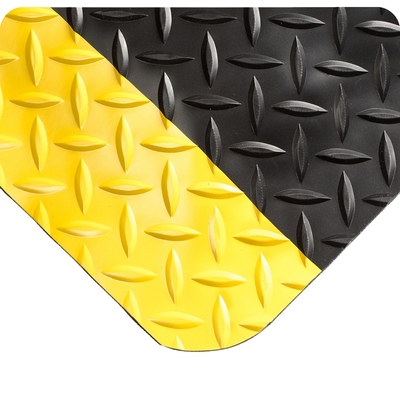

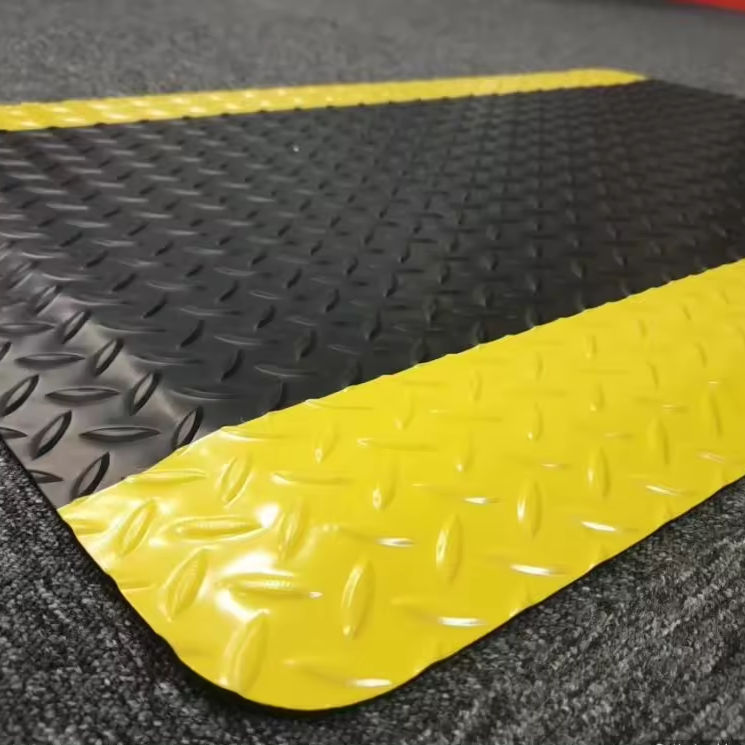

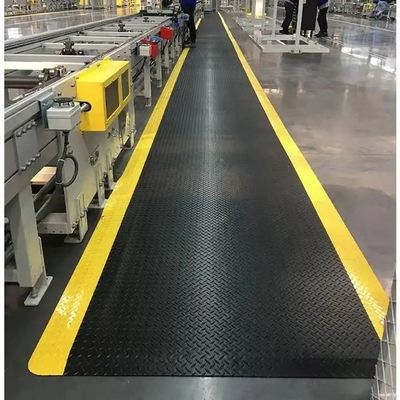

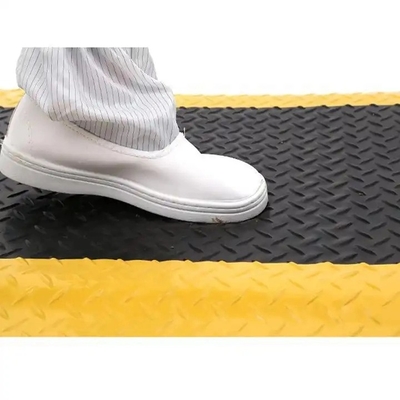

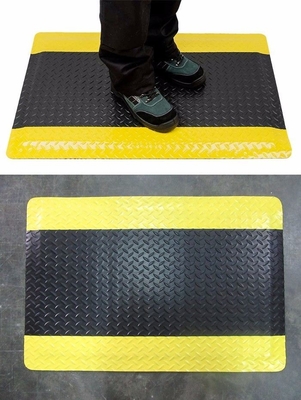

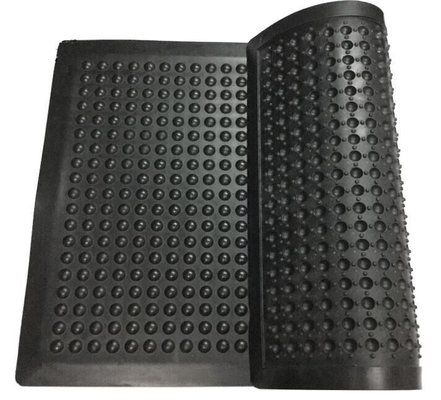

Anti-static Rubber Mat Anti-fatigue Floor Mat
Product Specifications
| Processing Service | Customized Color |
| Product Name | Anti fatigue mat |
| Material | PVC+EVA/EPDM foam+Rubber |
| Thickness | 10mm-30mm |
| Color | Black & yellow; customized |
| Volume Resistance | 10e6-10e9 ohm |
| Recommended Work Condition | Weight <100KG |
| Usage | Electronic Workshop |
| Size | Customer Size Accepted |
Product Description
Our anti-fatigue mats feature a 3-layer structure with PVC surface, carbamic resin middle layer, and conductive rubber bottom layer. Available in black or black & yellow color options with surface resistance of RTT 1x10E6-10E9 ohms. Ideal for electronic components manufacturers and static sensitive areas.
Available Models
| Model | Size(mm) | Material | Surface Resistance | Ground Resistance | Anti-fatigue Effect | Note |
|---|---|---|---|---|---|---|
| HZ-950 | 610x460x15 | Good Natural Rubber | <107ohm | <107ohm | Best | |
| HZ-930 | 610x910x12.5 610x450x12.5 |
Rubber Material | 108-109ohm | 108-109ohm | Good | Low cost design |
| HZ-418S | 610x910x17 | 2 layers: PVC+ Carbamic resin | 108-109ohm | 109-1010ohm | Better | |
| HZ-418E | 610x910x18 610x450x18 |
3 layers: PVC + Carbamic resin + Conductive rubber | 108-109ohm | 109-1010ohm | Better | |
| HZ-418B | 610x910x20 | 3 layers: PVC + EPDM + Conductive rubber | 108-109ohm | 109-1010ohm | Better | Low cost design |
Key Features
- Textured surface provides traction and prevents slips, enhancing workplace safety
- Cushioned construction reduces fatigue from prolonged standing
- Custom sizes available to fit any workspace
- Effective static control with volume resistance of 10e6-10e9 ohm
- Durable 3-layer construction for long-lasting performance
About Shanghai Herzesd Industry Co., Ltd
Specialized in ESD products including anti-static equipment, ESD work station accessories, safe packaging materials, and ESD control materials. Established in 2018, we are a reputable manufacturer and supplier known for excellent product quality, competitive pricing, and professional services.
Our product range includes ESD workstations, chairs, clothing, footwear, flooring, packaging materials, storage systems, and testing equipment. We adhere to ESD standards IEC 61340 and ANSI S2020 to ensure quality assurance.
Frequently Asked Questions
Why You Need ESD Protection For Your Production Line?
Electronic components sensitive to electrostatic discharges can be damaged when current or impact energy exceeds permitted levels. Human handling can generate thousands of volts - well above the tolerance of many ESD components. We recommend implementing ESD safe procedures according to IEC 61340 or ANSI S2020 standards as the foundation for quality assurance.
Why Choose HerzESD?
HerzESD provides accurate technical information and solutions, even when it contradicts established market opinions. We pride ourselves on delivering correct ESD solutions through reliable manufacturing partnerships. Our international collaborations ensure we stay at the forefront of static electricity control technologies.
