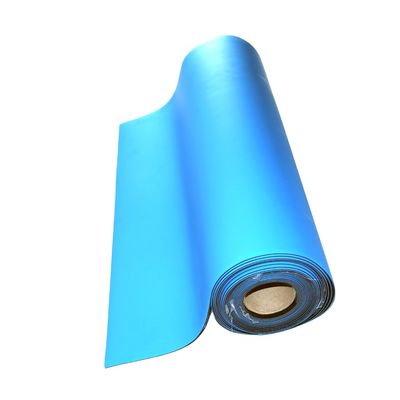

ESD Rubber Mat 2mm 3mm Thickness 10e6-10e9 Ohm Surface Resistance
Product Details:
| Place of Origin: | China |
| Brand Name: | Herzesd |
| Model Number: | HZ-30617 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|
|
Detail Information |
|||
| Material: | Nitrile Rubber | Thickness: | 2mm/3mm |
|---|---|---|---|
| Surface Resistance: | 10e6-10e9 Ohm | Under Layer Resistance: | 10e3-10e6 Ohm |
| Size: | 1*10M; 0.6*10M; 1.2*10M Per Roll | Volume Resistance: | 10e7-10e10 Ohm*cm |
| Friction Electrostatic Charge (Surface): | <100V | Friction Electrostatic Charge (Conductive): | <50V |
| Color Options: | Green, Gray, Blue Or Customized | Surface Type: | Matt/Glossy |
| Model: | HZ-30617 | Normal Size: | 1m*10m; 1.2m*10m |
| Static Dissipation Layer: | Surface Resistance 107-109ohm | Conductive Layer: | Surface Resistance ≤106ohm |
| Processing Service: | Cutting | ||
| Highlight: | ESD rubber mat 2mm thickness,ESD rubber mat 3mm thickness,ESD rubber mat surface resistance |
||
Product Description
ESD Table Mat Grounding Conductive Rubber Matting
HerzESD offers a comprehensive range of ESD table mats in flexible rubber and vinyl materials, as well as rigid options, designed for static control in high-tech industries. Our mats feature resistance to hot solder and chemicals with a two-layer construction: a static dissipative top layer and a black conductive bottom layer.
Product Specifications
| Model | HZ-30617 |
|---|---|
| Thickness | 1.8mm, 2mm, 3mm |
| Normal Size | 1m*10m; 1.2m*10m |
| Color | Green/Grey/Blue |
| Surface | Matt/Glossy |
| Surface Resistance | ≤10e6ohm |
| Volume Resistance | 10e7-10e10 ohm*cm |
Key Features
- Static dissipation layer with surface resistance: 107-109ohm
- Friction electrostatic charge: <100V
- Conductive layer with surface resistance: ≤106ohm
- Friction electrostatic charge: <50V
- Volume Resistance: 107-1010 ohm*cm

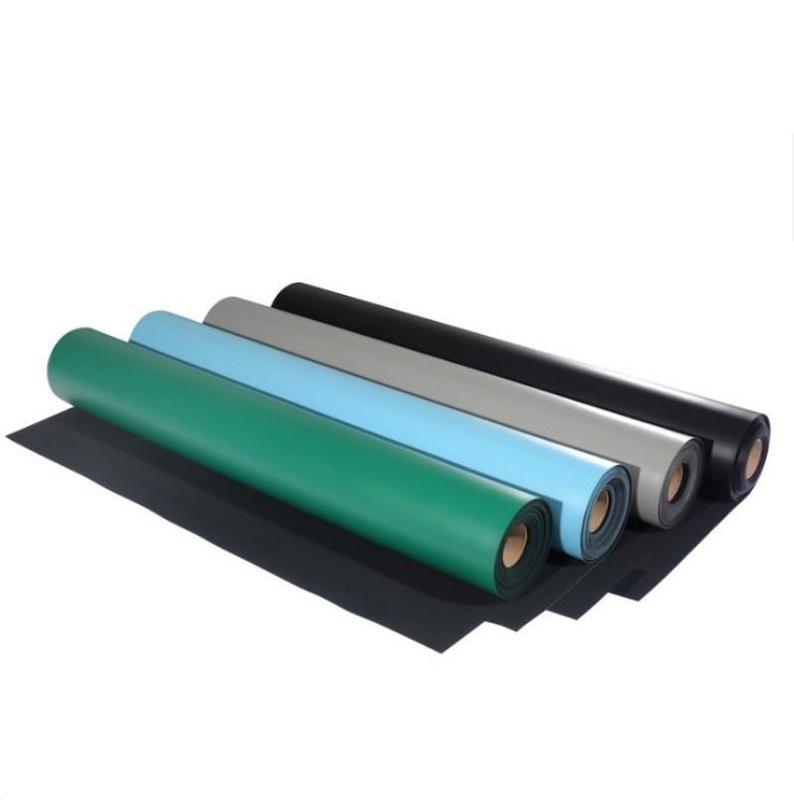

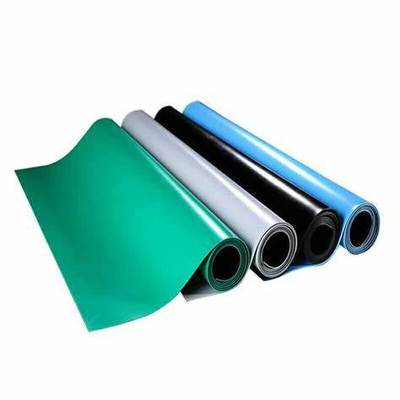

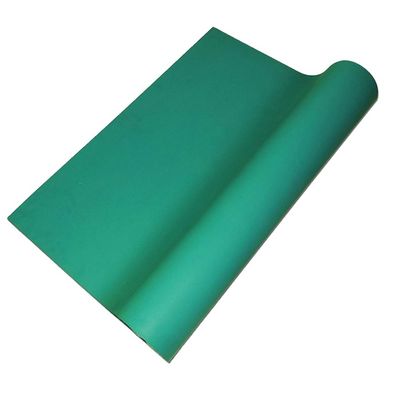

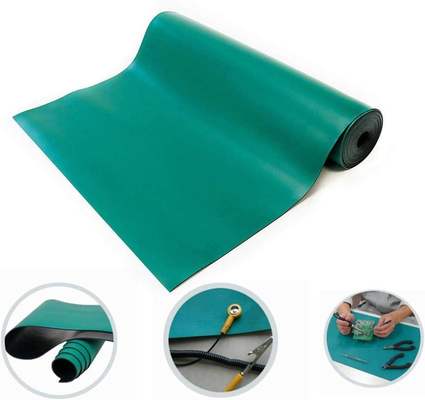

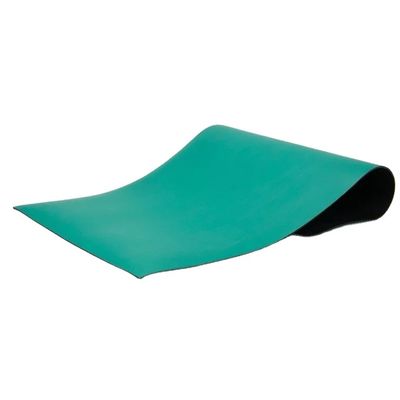

Product Images
Packaging & Shipping
Company Information
Shanghai Herzesd Industrial manufactures ESD products through meticulous planning and technological excellence. Our products combine quality, innovation, and precision technology, with continuous upgrades to enhance security features. We maintain rigorous quality control with a dedicated team ensuring optimal performance of all ESD accessories.
Frequently Asked Questions
Why do you need ESD protection for your production line?
Electronic components sensitive to electrostatic discharges (ESD) can be damaged when exposed to excessive current or impact energy. These components, typically semi-conducting elements, are often damaged through human handling. Humans can accumulate several thousand volts simply by walking. While discharges become noticeable at 2000-3000V, many ESD components are damaged at much lower levels. Implementing ESD-safe procedures according to IEC 61340 or ANSI S2020 standards forms the foundation of protective work and quality assurance. We offer comprehensive ESD solutions including workstations, chairs, flooring, clothing, footwear, packaging, and testing equipment.
Why choose HerzESD?
HerzESD is committed to providing accurate information and optimal ESD solutions, even when it means challenging established market opinions. We pride ourselves on delivering only correct ESD solutions through reliable manufacturing and international partnerships. Our focus remains on continuous improvement in static electricity control solutions.
