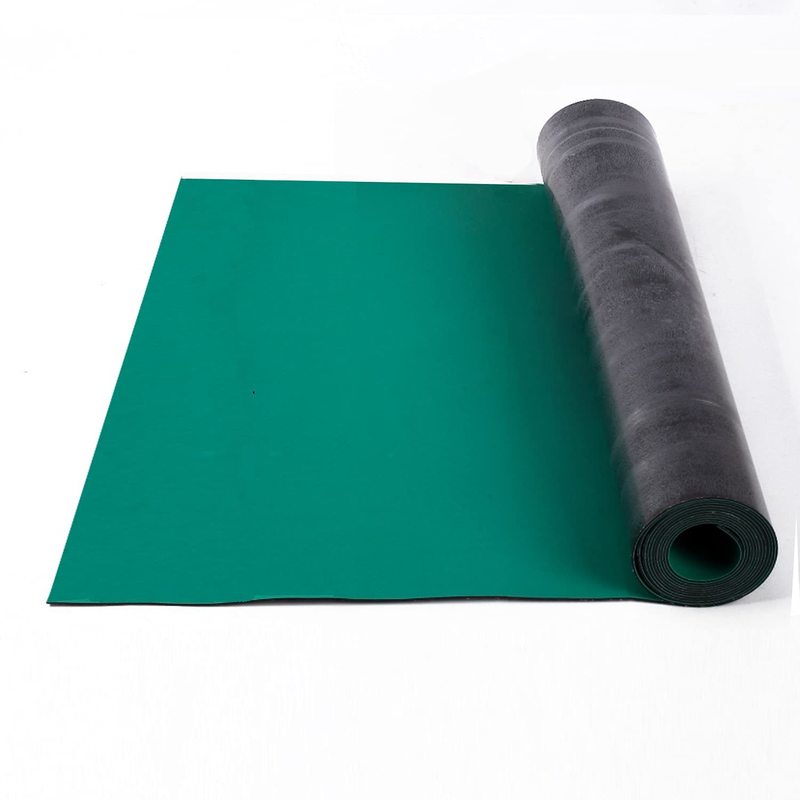

ESD Rubber Mat 2mm 3mm Thickness 10e6-10e9 Ohm Surface Resistance
Product Details:
| Place of Origin: | China |
| Brand Name: | Herzesd |
| Model Number: | HZ-30617 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | $35-45 |
|
Detail Information |
|||
| Thickness: | 2mm/3mm | Material: | Nitrile Rubber |
|---|---|---|---|
| Surface Resistance: | 10e6-10e9 Ohm | Under Layer Resistance: | 10e3-10e6 Ohm |
| Size: | 1*10M; 0.6*10M; 1.2*10M Per Roll | Volume Resistance: | 10e7-10e10 Ohm*cm |
| Friction Electrostatic Charge: | <100V (surface), <50V (conductive Layer) | Surface Type: | Matt/Glossy |
| Model: | HZ-30617 | Normal Size: | 1m*10m; 1.2m*10m |
| Processing Service: | Cutting | Static Dissipation Layer: | Surface Resistance 107-109ohm |
| Conductive Layer: | Surface Resistance ≤106ohm | Color Options: | Green, Gray, Blue |
| Customizable: | Yes | ||
| Highlight: | ESD rubber mat 2mm thickness,ESD rubber mat 3mm thickness,ESD rubber mat surface resistance |
||
Product Description
ESD Rubber Mat Antistatic Table Mat 1x10m 1.2x1m Customize Available

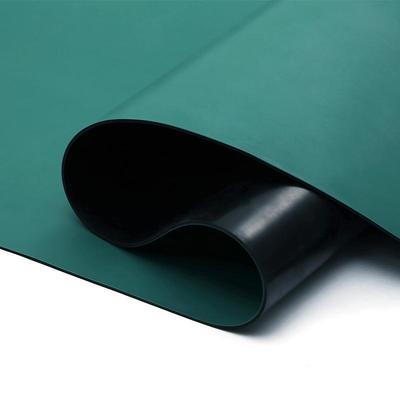

HerzESD offers a comprehensive range of ESD table mats in flexible rubber and vinyl materials, as well as rigid options, designed for static control in high-tech industries. Our ESD Rubber and PVC mats provide excellent resistance to hot solder and chemicals, featuring a two-layer construction with a static dissipative top and black conductive bottom.

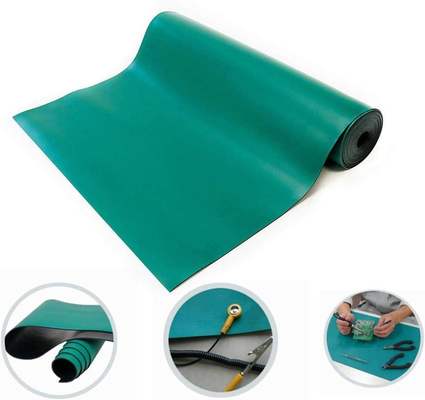

ESD vinyl table mats are ideal for general electronics assembly, available in either 2-layer mat or single layer homogeneous material. Both rubber and vinyl mats come in rolls or as complete ESD work surface mat kits including a ground snap and common point ground. Custom sizes are available upon request.
Product Specifications
| Model | HZ-30617 |
|---|---|
| Thickness | 1.8mm, 2mm, 3mm |
| Normal Size | 1m*10m; 1.2m*10m |

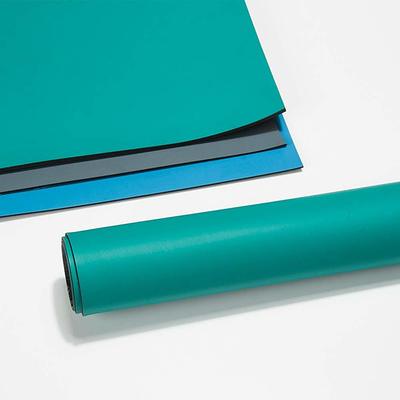

| Color | Green/Grey/Blue |
| Surface | Matt/Glossy |
| Surface Resistance | ≤10e6ohm |
| Volume Resistance | 10e7-10e10 ohm*cm |
Key Features
- Static dissipation layer: Surface resistance 107-109ohm
- Friction electrostatic charge: <100V
- Conductive layer: Surface resistance ≤106ohm
- Friction electrostatic charge: <50V
- Volume Resistance: 107-1010 ohm*cm
Product Images
Packaging & Shipping
About HerzESD
Shanghai Herzesd Industrial manufactures ESD products through meticulous planning and technological excellence. Our products combine quality, innovation, and precision technology, with continuous upgrades to enhance security features. Backed by a dedicated team and rigorous quality control, we deliver long-lasting ESD solutions for various industrial applications.
Frequently Asked Questions
Why you need ESD protection for your production line?
Electronic components sensitive to electrostatic discharges (ESD) can be damaged when exposed to excessive current or impact energy. This risk primarily affects semi-conducting components and thin-film construction elements, often through human handling. Humans can accumulate several thousand volts simply by walking, with discharges above 2000-3000V potentially damaging ESD-sensitive components.
Implementing ESD-safe procedures according to IEC 61340 or ANSI S2020 standards forms the foundation of effective static control. Beyond our anti-static conductive workstations, we offer a comprehensive range of ESD solutions including chairs, cleaning products, clothing, footwear, flooring, packaging, grounding materials, storage systems, and testing equipment.
Why choose HerzESD?
HerzESD is committed to providing accurate information and proper ESD solutions, even when it means correcting common misconceptions. We take pride in delivering only correct ESD solutions through reliable manufacturing partnerships and continuous innovation in static electricity control.
As a solid partner in the ESD industry, HerzESD collaborates with international experts to develop improved solutions for static control challenges, ensuring the highest quality standards for our customers worldwide.
