Flame Retardant ESD Rubber Mat 2mm 3mm Thickness 10e6-10e9 Ohm
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Herzesd |
| Model Number: | HZ-30617 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 |
|---|
|
Detail Information |
|||
| Thickness: | 2mm/3mm | Material: | Nitrile Rubber |
|---|---|---|---|
| Surface Resistance: | 10e6-10e9 Ohm | Under Layer Resistance: | 10e3-10e6 Ohm |
| Size: | 1*10M; 0.6*10M; 1.2*10M Per Roll | Heat Resistance: | 340℃ |
| Volume Resistance: | 10e7-10e10 Ohm*cm | Surface Layer Thickness: | 0.5mm |
| Bottom Layer Thickness: | 1.5mm | Surface Type: | Matt/Glossy |
| Color Options: | Green, Gray, Blue | Surface Resistance Limit: | ≤10e6ohm |
| Model Number: | HZ-30617 | Normal Size: | 1m*10m; 1.2m*10m |
| Packing: | Plastic Membrane+pallet | ||
| Highlight: | Flame retardant ESD rubber mat,2mm ESD rubber mat,3mm thickness ESD mat |
||
Product Description
Flame Retardant ESD Antistatic Matting High Temperature Natural Rubber Sheet Table Mat Floor
Product Specifications
| Model | HZ-30617 |
|---|---|
| Thickness | 1.8mm, 2mm, 3mm |
| Normal Size | 1m*10m; 1.2m*10m |
| Color | Green/Grey/Blue |
| Surface | Matt/Glossy |
| Surface Resistance | ≤10e6ohm |
| Heat Resistance | 340℃ |
| Volume Resistance | 10e7-10e10 ohm*cm |
Key Features
- ESD tabletop mats provide an ESD-safe work surface on tables or benches
- Available in various sizes and thicknesses

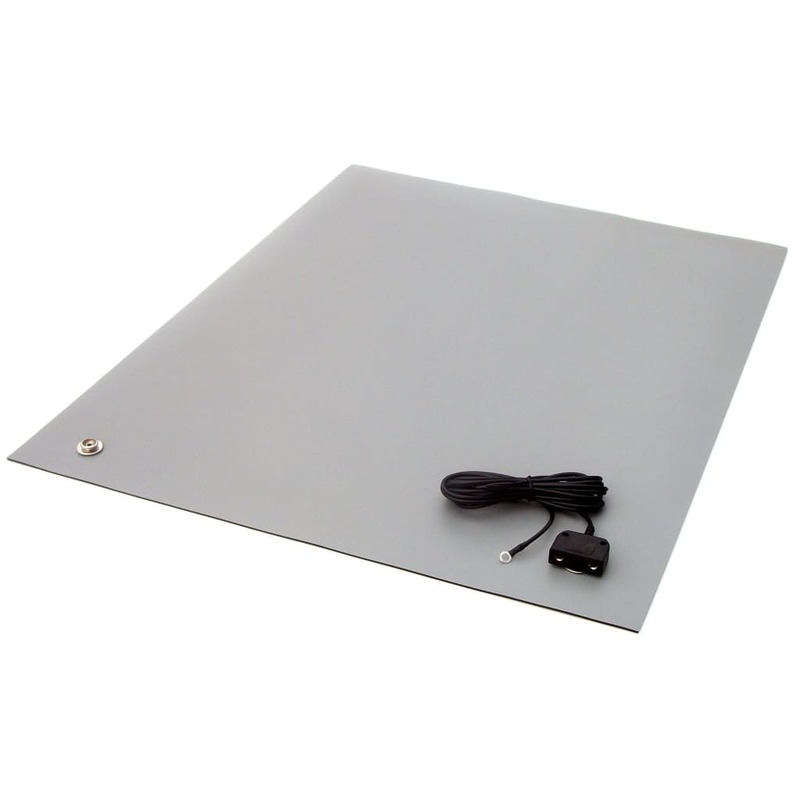

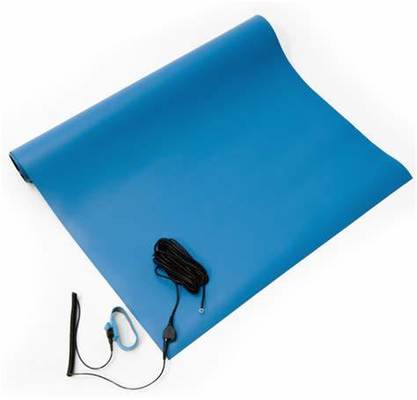

- Includes grounding hardware for proper static dissipation
- Surface layer: 0.5mm thick static-dissipative layer
- Bottom layer: 1.5mm conductive layer
Product Images
