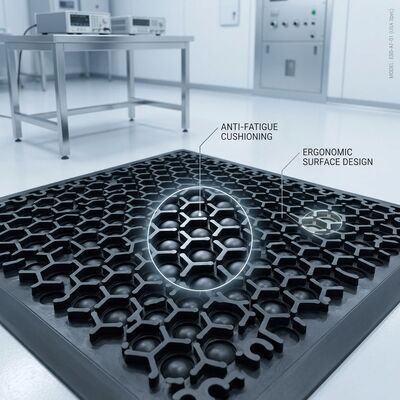

Oil-Resistant Anti-Fatigue ESD Rubber Floor Mat for Cleanroom Electronics Workshop

The Black ESD Anti-Fatigue Rubber Floor Mat is engineered for electronics manufacturing, cleanroom assembly, and precision workshop environments where static control and operator comfort are equally critical. Manufactured from a conductive NBR and SBR rubber compound, this anti-fatigue ESD rubber floor mat delivers a stable volume resistance between 10⁶ and 10⁹ ohms, safely dissipating the static charges that would otherwise damage sensitive printed circuit boards, semiconductors, and precision instruments. Because each mat is produced in an ISO 9001 certified plant and batch-tested for resistance and hardness before shipment, buyers receive a consistent, verifiable product rather than an unproven commodity. Its oil-resistant formulation resists hydraulic fluids, lubricants, coolants, and common industrial solvents, extending service life in demanding production areas. The dual-layer vulcanized construction combines a high-density cushioning base with a durable wear-resistant top skin, so the mat cushions standing workers through long shifts while withstanding continuous foot traffic and the rolling load of trolleys and carts.

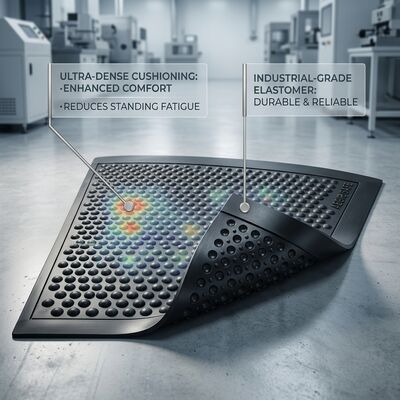

• Ergonomic Anti-Fatigue Cushioning: A high-density vulcanized base reduces leg, knee, and lower-back fatigue, helping operators stay productive and focused during extended standing shifts.
• Reliable ESD Performance: Consistent volume resistance of 10⁶–10⁹ ohms safely channels static charge to ground, protecting static-sensitive components in electronics workshop environments.
• Oil and Chemical Resistance: The closed-cell rubber surface resists oils, greases, coolants, and mild acids, keeping the mat stable and grippy in machining and maintenance zones.

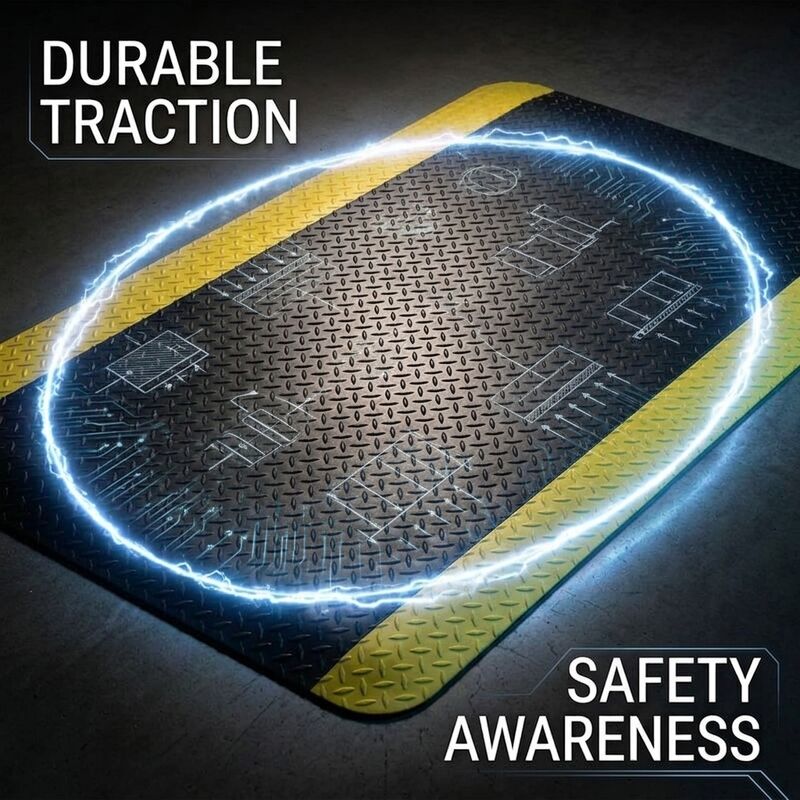

• Slip-Resistant Texture: A raised coin or ribbed embossed pattern delivers dependable traction even when the surface is lightly contaminated, improving workplace safety.
• Flexible Modular Sizing: Mats can be cut, trimmed, or laid edge to edge to fit benches, aisles, and workstations, simplifying installation across large cleanroom floors.
• Low Maintenance and Low Shedding: The non-porous surface wipes clean with a damp cloth or mild detergent and does not release particles that could contaminate a controlled area.

This oil-resistant anti-fatigue ESD rubber floor mat is specified for static-controlled areas such as SMT assembly lines, PCB inspection and rework stations, semiconductor packaging rooms, and electronics repair benches. It is equally at home in laboratories, medical device assembly, aerospace component workshops, and any standing workstation that demands both electrostatic discharge protection and floor-level comfort. Facility managers select it because a single product solves two recurring problems at once: protecting sensitive assemblies from electrostatic damage and reducing the fatigue and absenteeism that come with hard concrete floors.

• SMT and through-hole assembly lines
• PCB inspection, test, and rework stations
• Semiconductor and microelectronics packaging rooms
• Cleanroom corridors and gowning areas
• Laboratories, medical and aerospace assembly benches
• Warehouse packing and quality control standing posts

Yes. With volume resistance between 10⁶ and 10⁹ ohms, the mat meets the resistance window expected for ESD-protected areas in electronics workshops, and it can be connected to a building ground through a standard grounding snap for reliable charge dissipation.

The closed-cell NBR / SBR blend resists oils, greases, coolants, and mild industrial chemicals. It will not soften or swell quickly under normal contact, so it keeps its shape, texture, and resistance value in maintenance zones where spills are common.

Yes. Standard thickness options are 10 mm, 15 mm, and 20 mm, and the mat is available as 900 x 900 mm sheets or 1000 x 10000 mm rolls. Sheets can be trimmed on site to fit benches, aisles, and irregular layouts.

Attach a grounding kit to a corner snap and connect it to a verified earth ground. Periodic resistance checks between the mat surface and ground confirm that the path stays within the 10⁶ to 10⁹ ohm window.

The minimum order quantity is 100 pieces, and standard orders ship within 7 to 15 days after deposit confirmation. Bulk programs and repeat orders are scheduled individually to match production plans.

Each mat is rolled on a cardboard core, wrapped in PE film, and packed in double-wall cartons or placed on pallets for container loading. Every production batch is tested for volume resistance, surface resistance, hardness, and tensile strength, and we keep the test records on file so that a buyer can trace the exact values of a delivered lot. The product is RoHS compliant and manufactured under ISO 9001 quality management, and we welcome third-party inspection before shipment so that the anti-fatigue ESD rubber floor mat you receive matches the specification you approved.
