ESD Adjustable PCB Magazine Rack Anti Static SMT PCB Storage Rack
Product Details:
| Place of Origin: | CN |
| Brand Name: | HERZESD |
| Model Number: | ESD Magazine Rack |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | USD 30-80/ set |
| Packaging Details: | Samples with Carton box/ Bulk order with Pallet |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, PayPal |
| Supply Ability: | 1000 units per week |
|
Detail Information |
|||
| Contour Size: | (L×W×H)mm: 355*320*560 | Storage Slot: | 50pcs Of Plates Can Be Stored |
|---|---|---|---|
| The Specification Of PCB Plates: | 355×(50－250)mm | Guide Slot Of Side Plate: | Depth 3.5mm, Width 4.5mm, Pitch 10mm |
| Material: | Top And Bottom Base Are Metal Base | Fix Method: | Gear Track Adjustable/Screw Adjustable |
| Side Plate: | Two Pieces Assembled | Weight: | 6.0KG |
| Highlight: | ESD adjustable PCB magazine rack,anti static SMT PCB storage rack,ESD magazine rack for PCB storage |
||
Product Description

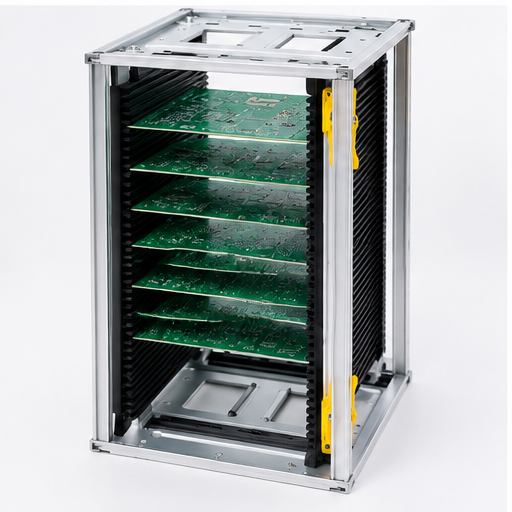

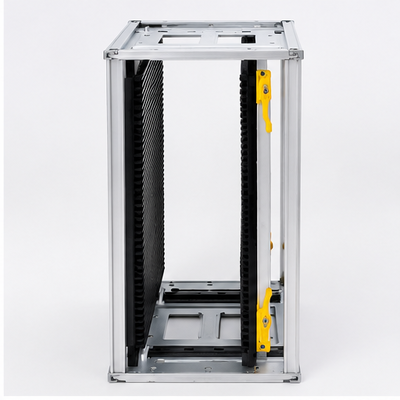

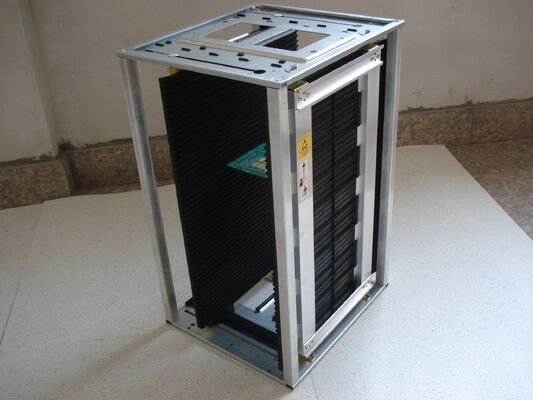

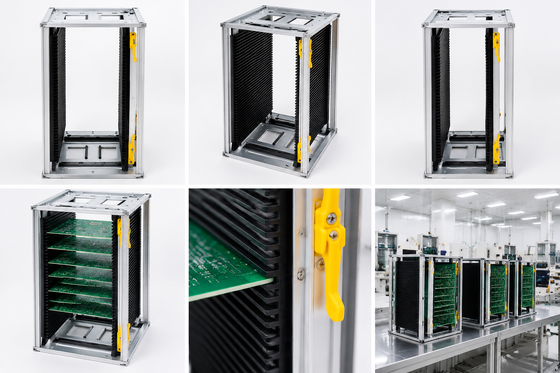

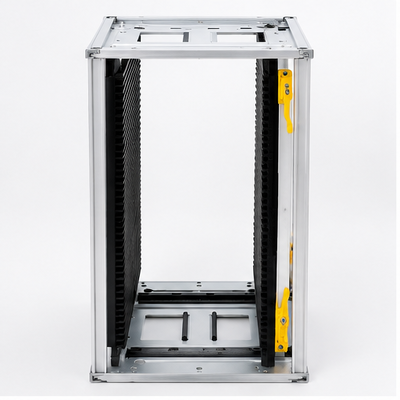

ESD PCB Magazine Rack
ESD Adjustable PCB Magazine Rack Anti Static SMT PCB Storage Rack
The ESD PCB Magazine Rack is made of volume-conductive polypropylene and a durable metal frame, providing reliable static protection for PCB handling, storage, and transportation in SMT production lines.
-
Anti-Static Protection – Helps protect PCBs from electrostatic discharge.
-

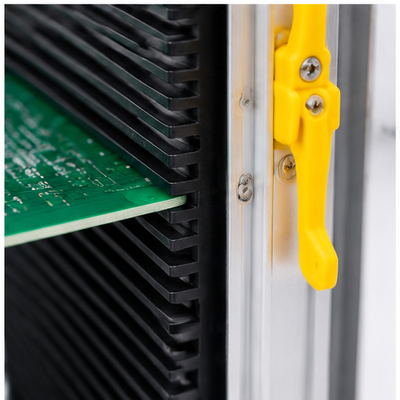

Adjustable Gear Track – Flexible adjustment for different PCB sizes.
-
Durable Construction – Designed for daily use in SMT production lines.
-

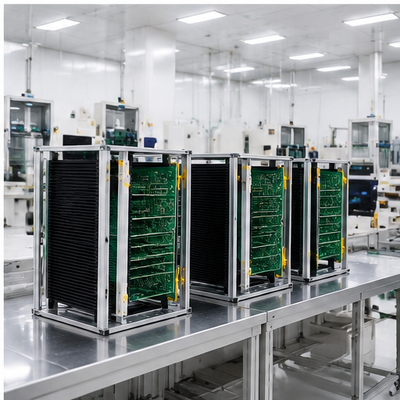

Wide Application – Suitable for PCB storage, handling, and organization in electronics manufacturing workshops.
Product Description
Customization
Different size available, please refer below
| Model | Outer size(mm) | PCB plate size(mm) | Base material | Adjust type | Temp. | Slots | Weight (KG) |
| HZ-2601 | 355*315*580 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 50 | 5 |
| HZ-2602 | 355*315*305 | 355*(80-250) | Plastic | Screw adjust. | 80℃ | 25 | 3.4 |
| HZ-2603 | 355*320*563 | 355* (50-250) | Metal | Screw/gear track | 80℃/120℃/200℃ | 50 | 5 |

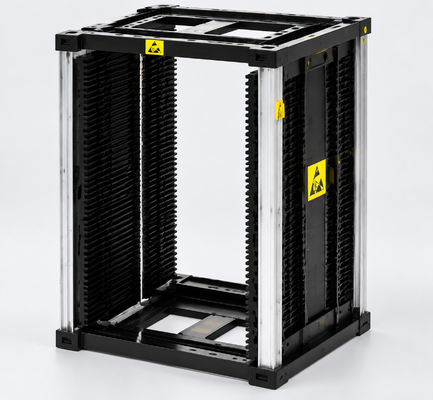

| HZ-2604 | 355*320*563 | 355* (50-250) | Plastic | Gear track | 80℃/120℃ | 50 | 4.5 |
| HZ-2605 | 355*320*563 | 355* (50-250) | Metal | Screw/gear track | 80℃/120℃ | 50 | 6.5 |
| HZ-2606 | 355*320*563 | 355* (50-250) | Metal | Gear track | 80℃/120℃ | 50 | 6 |
| HZ-2607 | 460*400*563 | 460*(50-330) | Metal | Screw/gear track | 80℃/120℃/200℃ | 50 | 8 |
| HZ-2608 | 535*460*570 | 535*(50-390) | Metal | Screw/gear track | 80℃/120℃ | 50 | 10.5 |
| HZ-2609 | 535*530*570 | 535*(120-460) | Metal | Screw/gear track | 80℃/120℃ | 50 | 12 |
| HZ-2610 | 630*530*570 | 630*(50-460) | Metal | Screw adjust. | 80℃ | 50 | 13 |
| HZ-2611 | 355*320*560 | 355* (50-250) | Plastic | Chain adjust. | 80℃ | 50 | 6 |
| HZ-2612 | 355*320*560 | 355*(80-250) | Metal | Screw/gear track | 550℃ | 50 | 6.8 |
| HZ-2613 | 400*320*563 | 400*(50-250) | Metal | Screw/gear track | 80℃ | 50 | 6 |
Company Profile
Shanghai Herzesd Industry Co., Ltd
Specialized range of ESD products including anti-static equipment, ESD Work Station Accessories, Safe Packaging Materials, ESD Control Materials, etc.
Packaging & Shipping
ESD Magazine Rack will be packaged in a cardboard box with foam cushioning to ensure safety during transit.
The box will be marked with the name of the product, shipping address, and other relevant shipping information.
The package will be shipped to the customer’s address via a reliable courier service.
FAQ
Q:1. Why do you need ESD protection for your production line?
♦ Electronic Components or assemblies at risk from electrostatic discharges (ESD) are among those sensitive elements that can be destroyed or damaged if the permitted levels of current or impact energy are exceeded.
♦ As a rule, these are always semi-conducting components and most are also thick- and thin-film construction elements. This type of construction element is mostly damaged through human mishandling. A human being can charge several thousands of volts just by walking. A discharge can be felt by humans from approximately 2000-3000 V, a current which is already well above the 'tolerance level' of many ESD components.
♦ Before buying or implementing ESD-safe products one needs to implement an ESD-safe procedure according to the ESD standards IEC 61340 or ANSI S2020 which is the foundation of ESD preventive protective work and a greater guarantee of quality assurance.
♦ Besides our Anti-Static conductive ESD Workstations we offer an extensive range of
Antistatic ESD Chairs, Antistatic ESD Cleaning & Maintenance, Antistatic ESD Clothing, ESD Shoes ESD Footwear, Antistatic ESD Flooring & Antistatic ESD Table Mats, ESD Safe Packaging, ESD Personal Grounding Materials, Anti-Static ESD Protective Storage & Warehousing Systems EPA, ESD Storage Boxes, ESD Test & Measuring Equipment, ESD Training, ESD Support & ESD Audits.
