Customized ESD Magazine Rack Gear Track Adjustable Antistatic PCB Magazine Rack

Customized ESD Magazine Rack Gear Track Adjustable Antistatic PCB Magazine Rack

Product Details:

Place of Origin: CN
Brand Name: HerzESD
Model Number: HZ-2604

Payment & Shipping Terms:

Price: USD 35-50/ set
Payment Terms: T/T, PayPal
Get Best Price Contact Now

Detail Information

Contour Size: (L×W×H)mm: 355*320*563 Storage Slot: 50pcs Of Plates Can Be Stored
The Specification Of PCB Plates: 355×(50-250)mm Guide Slot Of Side Plate: Depth 3mm, Width 5.5mm, Pitch 10mm
Material: Top And Bottom Base Are Plastic Base Fix Method: Gear Track Adjustable
Side Plate: Five Pieces Assembled Weight: 4.5KG
Highlight:

Antistatic ESD Magazine Rack

,

PCB ESD Magazine Rack

,

Gear Track Adjustable ESD Magazine Rack

Product Description

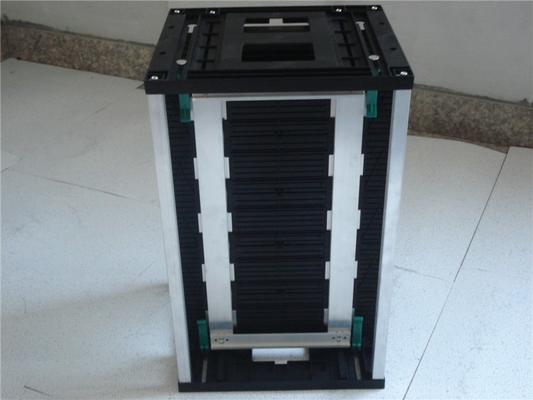

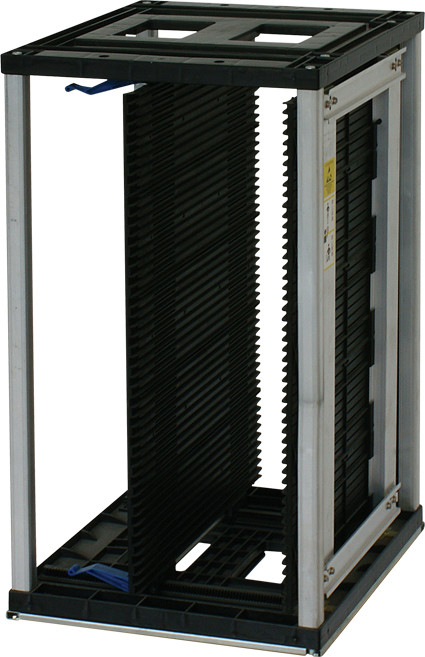

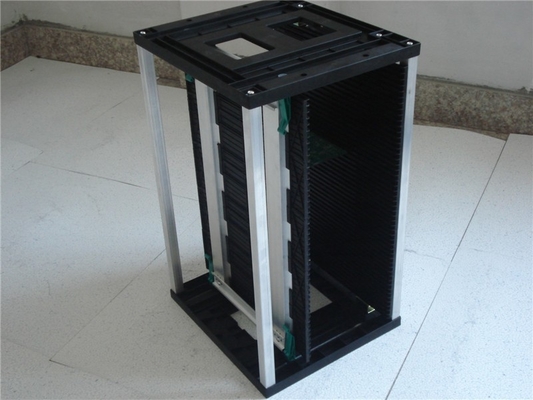

ESD Magazine Rack

Herzesd magazines rack meet standard dimensions most frequently used on automated lines.

A PCB Magazine or PCB Rack is made of volume conductive polypropylene and metal, which is used to transport the PCB boards for automated assembly lines. The anti-static PCB magazine racks are an ideal aid in the production, storage, and transportation of PCBs. The robust sidewall and metal frame guarantee that these PCB magazine racks are durable, and last a very long time.


1. The SMT magazine rack is designed for PCB manufacture, assembly, storage, and transfer.
2. Adjustable through screws, gear adjustment.
3. Common type (60°C) and heat-resistance type(120°C ,160~200°C) are available.
4. Surface resistance: 104~106 ohm.
5. Base: P-Conductive PS, M-Zincification Iron
6. Adjustment: G-Gear track adjustment, S-Screw adjustment
7. Max tolerant temperature: 60°C,120°C,160~200°C different material
8. PCB slots: The number of the SMT magazine rack Can accommodate PCBs



Product Description





Customized ESD Magazine Rack Gear Track Adjustable Antistatic PCB Magazine Rack 0Customized ESD Magazine Rack Gear Track Adjustable Antistatic PCB Magazine Rack 1Customized ESD Magazine Rack Gear Track Adjustable Antistatic PCB Magazine Rack 2Customized ESD Magazine Rack Gear Track Adjustable Antistatic PCB Magazine Rack 3



Customization



Model Outer size(mm) PCB plate size(mm) Base material Adjust type Temp. Slots Weight
(KG)
HZ-2601 355*315*580 355*(80-250) Plastic Screw adjust. 80℃ 50 5
HZ-2602 355*315*305 355*(80-250) Plastic Screw adjust. 80℃ 25 3.4
HZ-2603 355*320*563 355* (50-250) Metal Screw/gear track 80℃/120℃/200℃ 50 5
HZ-2604 355*320*563 355* (50-250) Plastic Gear track 80℃/120℃ 50 4.5
HZ-2605 355*320*563 355* (50-250) Metal Screw/gear track 80℃/120℃ 50 6.5
HZ-2606 355*320*563 355* (50-250) Metal Gear track 80℃/120℃ 50 6
HZ-2607 460*400*563 460*(50-330) Metal Screw/gear track 80℃/120℃/200℃ 50 8
HZ-2608 535*460*570 535*(50-390) Metal Screw/gear track 80℃/120℃ 50 10.5
HZ-2609 535*530*570 535*(120-460) Metal Screw/gear track 80℃/120℃ 50 12
HZ-2610 630*530*570 630*(50-460) Metal Screw adjust. 80℃ 50 13
HZ-2611 355*320*560 355* (50-250) Plastic Chain adjust. 80℃ 50 6
HZ-2612 355*320*560 355*(80-250) Metal Screw/gear track 550℃ 50 6.8
HZ-2613 400*320*563 400*(50-250) Metal Screw/gear track 80℃ 50 6



Company Profile



Customized ESD Magazine Rack Gear Track Adjustable Antistatic PCB Magazine Rack 4



Shanghai Herzesd Industry Co., Ltd

Specialized range of ESD products including anti-static equipment, ESD Work Station Accessories, Safe Packaging Materials, ESD Control Materials, etc.

In today's cutting-edge competition of electronic products, Shanghai Herzesd Industry Co., Ltd enjoys a high reputation amongst customers due to its excellent product quality, reasonable price range, and top-class professional services. Established in the year 2018, we are a reputed manufacturer, supplier, exporter, and trader of ESD Products which include ESD Equipments, Anti-static Equipments, ESD Work Station Accessories, ESD Shielding bags, ESD Magazine Racks, ESD PCB trolleys, ESD Workstation, ESD Garments, ESD Fabrics, Safe Packaging Materials, ESD Control Materials, Static Control Equipments, etc.

Packaging & Shipping



ESD Magazine Rack will be packaged in a cardboard box with foam cushioning to ensure safety during transit.

The box will be marked with the name of the product, shipping address, and other relevant shipping information.

The package will be shipped to the customer’s address via a reliable courier service.



Customized ESD Magazine Rack Gear Track Adjustable Antistatic PCB Magazine Rack 5



FAQ



Q:1. Why do you need ESD protection for your production line?



♦ Electronic Components or assemblies at risk from electrostatic discharges (ESD) are among those sensitive elements that can be destroyed or damaged if the permitted levels of current or impact energy are exceeded.



♦ As a rule, these are always semi-conducting components and most are also thick- and thin-film construction elements. This type of construction element is mostly damaged through human mishandling. A human being can charge several thousands of volts just by walking. A discharge can be felt by humans from approximately 2000-3000 V, a current which is already well above the 'tolerance level' of many ESD components.



♦ Before buying or implementing ESD-safe products one needs to implement an ESD-safe procedure according to the ESD standards IEC 61340 or ANSI S2020 which is the foundation of ESD preventive protective work and a greater guarantee of quality assurance.



♦ Besides our Anti-Static conductive ESD Workstations we offer an extensive range of
Antistatic ESD Chairs, Antistatic ESD Cleaning & Maintenance, Antistatic ESD Clothing, ESD Shoes ESD Footwear, Antistatic ESD Flooring & Antistatic ESD Table Mats, ESD Safe Packaging, ESD Personal Grounding Materials, Anti-Static ESD Protective Storage & Warehousing Systems EPA, ESD Storage Boxes, ESD Test & Measuring Equipment, ESD Training, ESD Support & ESD Audits.



Q: 2. Why did you choose HerzESD?



♦ HerzESD strives to serve our customers better by offering correct and clear explanatory answers. We try to do so, even when informing our customers better, which means contradicting a more established but sometimes flawed opinion on the market. At HerzESD we pride ourselves on ensuring the only correct ESD solution.

♦ To continue this vision we need reliable ESD manufacturers and suppliers on which we can always count. HerzESD is a solid partner and together with our international partners, we stay strong and vigilant in regards to possible improvements or new solutions in tackling and controlling static electricity.
