ESD PCB Magazine Racks Antistatic SMT PCB Storage Rack

ESD PCB Magazine Racks Antistatic SMT PCB Storage Rack

Product Details:

Place of Origin: CN
Brand Name: Herzesd

Payment & Shipping Terms:

Minimum Order Quantity: 5
Price: USD 35-50/ set
Get Best Price Contact Now

Detail Information

Features: Easy To Assemble, Lightweight, Durable Adjust Type: Screw/ Gear Track
Warranty: 1 Year Compatibility: ESD-Safe Workstations
Package Includes: 1 X Magazine Rack High Temperature Resistance: 80℃,120℃ And 200℃ Above Are Available
Assembly Required: Yes Usage: Electrostatic Discharge
Highlight:

SMT PCB Storage Rack

,

Antistatic PCB Magazine Racks

,

ESD PCB Magazine Racks

Product Description

High-quality storage solution designed to protect sensitive electronic components from electrostatic discharge (ESD) during transportation and storage.

This PCM magazine rack is made of durable materials and features a sturdy construction that ensures maximum protection for your valuable PCBs.



Size Chart:

Model Outer size(mm) PCB plate size(mm) Base material Adjust type Temp. Slots Weight
(KG)
HZ-2601 355*315*580 355*(80-250) Plastic Screw adjust. 80℃ 50 5
HZ-2602 355*315*305 355*(80-250) Plastic Screw adjust. 80℃ 25 3.4
HZ-2603 355*320*563 355* (50-250) Metal Screw / gear track 80℃/120℃/200℃ 50 5
HZ-2604 355*320*563 355* (50-250) Plastic Gear track 80℃/120℃ 50 4.5
HZ-2605 355*320*563 355* (50-250) Metal Screw / gear track 80℃/120℃ 50 6.5
HZ-2606 355*320*563 355* (50-250) Metal Gear track 80℃/120℃ 50 6
HZ-2607 460*400*563 460*(50-330) Metal Screw / gear track 80℃/120℃/200℃ 50 8
HZ-2608 535*460*570 535*(50-390) Metal Screw / gear track 80℃/120℃ 50 10.5
HZ-2609 535*530*570 535*(120-460) Metal Screw / gear track 80℃/120℃ 50 12
HZ-2610 630*530*570 630*(50-460) Metal Screw adjust. 80℃ 50 13
HZ-2611 355*320*560 355* (50-250) Plastic Chain adjust. 80℃ 50 6
HZ-2612 355*320*560 355*(80-250) Metal Screw / gear track 550℃ 50 6.8
HZ-2613 400*320*563 400*(50-250) Metal Screw / gear track 80℃ 50 6

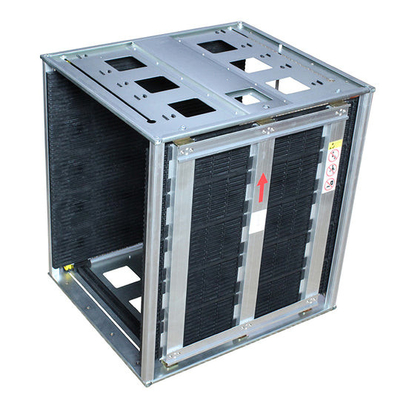

ESD PCB Magazine Racks Antistatic SMT PCB Storage Rack 0



ESD SMT PCB Magazine Racks:


A PCB Magazine or PCB Rack is made of volume conductive polypropyleneand metalwhich is used to transport the PCB boards for automated assembly lines
1.The SMT magazine rack is designed for PCBs manufacture, assembly, storage and transfer.
2.Adjustable through screws,gear adjustment.
3.Common type (60°C) and heat-resistance type(120°C ,160~200°C) are available.
4.Surface resistance: 104~106 ohm.
5.Base: P-Conductive PS, M-Zincification Iron
6.Adjustment: G-Gear track adjustment, S-Screw adjustment
7.Max tolerant temperature: 60°C,120°C,160~200°C different material 8.PCB slots:The number of the SMT magazine rack Can accommodate PCBs

Packing and Shipping:

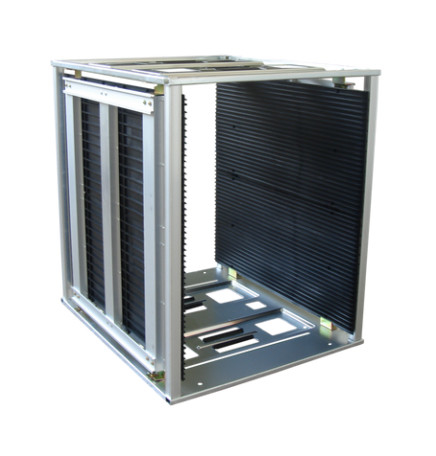

ESD PCB Magazine Racks Antistatic SMT PCB Storage Rack 1
